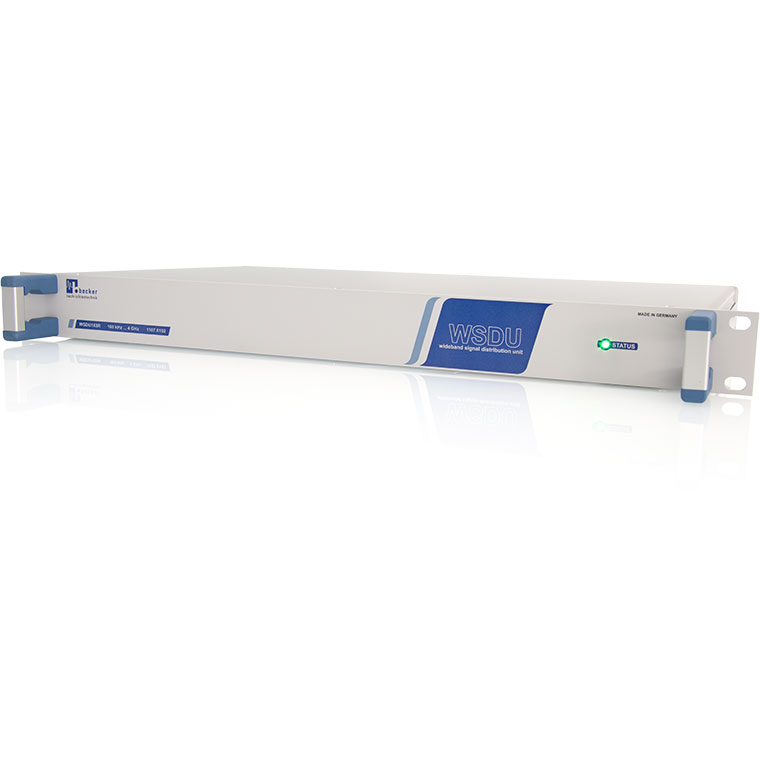

WSDU-1X8R is a wideband multicoupler which distributes signals from a common input to 8 outputs without loss in level. The compact device has high dynamic and covers the frequency range 100 kHz to 4000 MHz. Thus WSDU-1X8R is special suitable for the distribution of broadcast signals from long wave range up to the UHF range. WSDU-1X8R is available in variants for power supply with mains voltage or DC voltage and optional for V/UHF applications with an integrated high pass filter.
A integrated monitoring port enables interrupt free checking and maintenance in complex systems.
The input signals are amplified with broadband, low-noise amplifiers and distributed lossless in level to eight outputs in the range 100 kHz to 4000 MHz. Due to the high bandwidth, the multicoupler is suitable for the distribution of all common broadcasting standards and their transmission in the frequency division multiplex. In this way costs for RF cables and their installation in buildings can be saved.
The devices of the WSDU-Series have compact and rugged 19“, 1 U design and therefore suitable for the integration into 19“ system racks.
The devices of the WSDU series are cascadeable. This way, the number of outputs of a system can easily be adapted to the customer´s needs. For large scale distributions the 6 U slot-in module WSDU-1X8 for the SR6-11C platform is available.
With the help of these components, e.g. an active 1X64 signal distribution in a space-saving and cost-efficient manner in just 6 HE can be realized.
