VR8042 - 2 Channels, 12-bit, 10GS/s, DC-4GHz digitizer

Main features

  • Dual channel 12-bit ADC, 10 GSa/s per channel
  • DC to 4 GHz analog bandwidth
    • ±0.2 dB amplitude flatness
    • ±1.5 degree phase flatness
  • Input sensitivity of 64 mV to 8 V peak-to-peak full scale
    • Selectable with 1 dB calibrated sensitivities
  • DC offset adjustment ±4V for all sensitivities
  • SFDR -70 dBc @ 1 GHz
  • SNR > 46 dB, 400 mV to 8 V full scale
  • ENOB 7.3 @ 2 GHz, full bandwidth, -3 dB full scale
  • Channel digital triggers
  • External digital trigger
    • Jitter < 1 ps RMS
    • Max frequency of 9 MHz (100% trigger utilization)
  • 32 GB of acquisition memory per channel
  • Real-time digital full-band frequency and phase response equalization
  • Digital real-time low-pass filter (LPF) with adjustable bandwidth of 4 GHz and down to 62.5 MHz
    • Decimation by 1 (without decimation), 2, 4, 8, 16, 32 or 64
  • Real-time digital down converter (DDC) with maximum span of 2 GHz and down to 119 kHz
  • Decimation by 4 to 2^16
  • FPGA-based reconfigurable real-time digital signal processing with 10 GSa/s processing speed per channel
  • Signal (time-domain) and spectrum analyzer (frequency-domain) display with software control panel
  • Software development kit (SDK) for custom applications
  • Command line utilities for digitizer control
  • Data transfer to computer with speeds up to 10 GB/s
  • Dual slot PCIe form factor with Gen 3 x16 interface
Price request Datasheet Ask a question

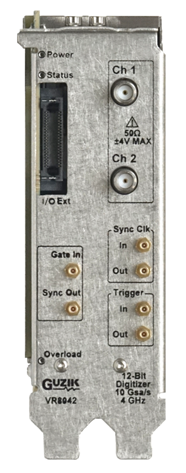

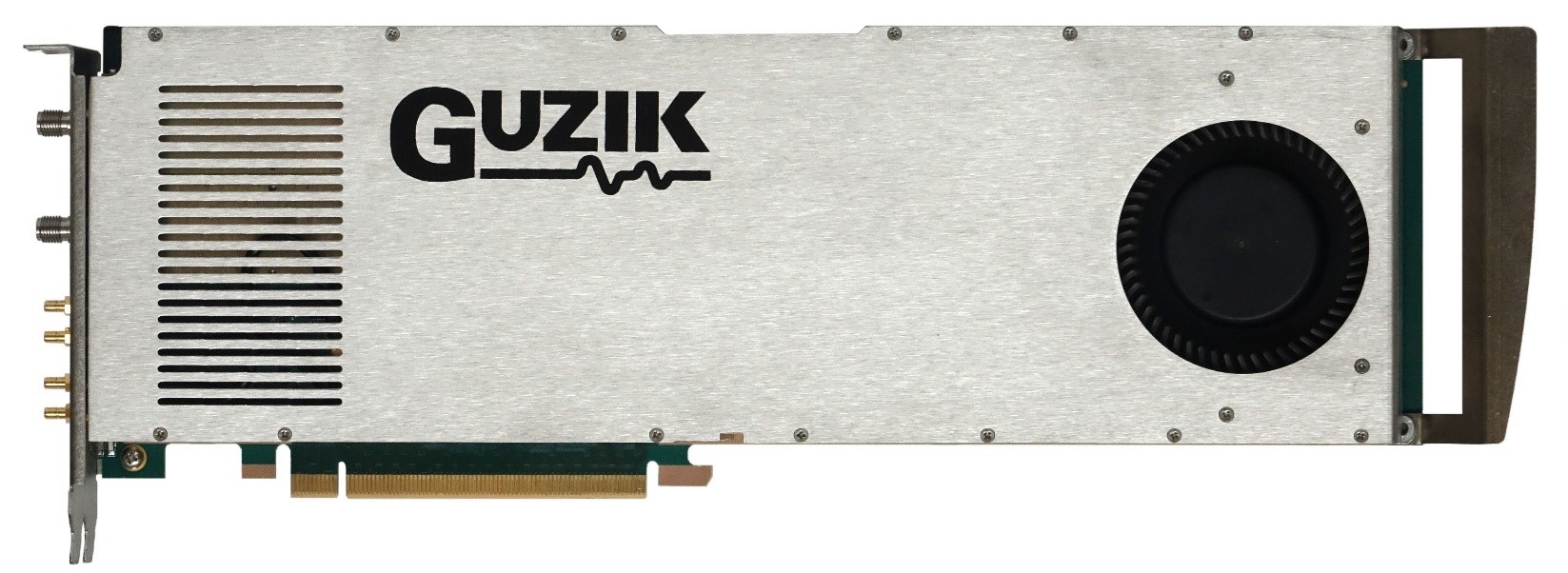

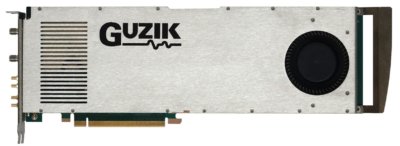

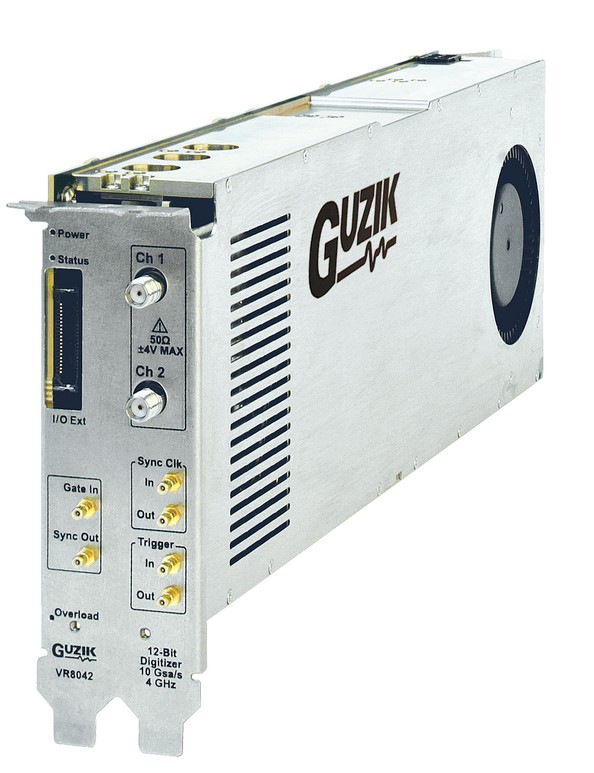

The Guzik VR8042 is a 12-bit, 10 GSa/s digitizer that combines adjustable frontends, high-speed ADCs and built-in FPGA digital signal processing, which enables signal capture and analysis with high-throughput data transfer to host computer of up to 10 GB/s. The VR8042 comes as a pluggable module in a 2U PCI Express form factor.
