USBPHP-S1 - Single-Channel fully programmable instrumentation amplifier High Pass filter

Main features

  • Differential or single-ended input
  • ±10Vmax Signal Input and Output with input protection up to ±40V
  • Software-programmable instrumentation amplifier gains of 1 to 1000
  • Compatible with any 12, 16, or 24-bit A/D converter devices
  • Windows compatible menu setup software and SDK included
  • Software select any low pass corner frequency from 0.1 Hz to the maximum with no steps
  • Software select any high pass Fc from 10 Hz to 1275Hz (N) or 1100Hz to 41.5kHz (E)
  • High pass filter available as a 4-Pole Butterworth or 4-Pole Bessel
  • Filter rejection band attenuation up to -90dB
  • USB 2.0 compatible communication for setup and control
  • Non-volatile configuration retains all settings through power cycles
  • Does not need to be attached to a PC to operate
  • DC power source allows for convenient 9 to 12V battery operation
  • Includes universal AC/DC power adapter use anywhere on the planet
  • Factory calibrated for unity gain and very low DC offset filter output
  • Use multiple USBPHP-S1 units for multi-channel applications
Price request Datasheet Ask a question

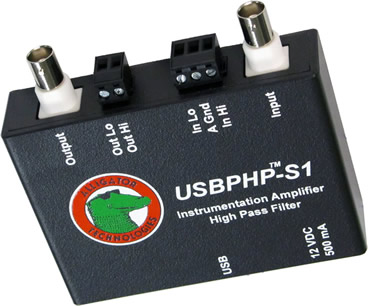

Adaptable to most Data Acquisition Applications, The USBPHP-S1 stand alone USB controllable module is a single channel high-pass filter and high-quality instrumentation amplifier for front-end signal conditioning. It is compatible with all popular A/D converter devices.

The USBPHP-S1 is powered with 9 to 12VDC so it can be connected to a battery voltage source or the supplied 115-220VAC adapter may be used for operation with wall power anywhere in the world.

When programmed from the USB port, the USBPHP-S1 will remember all of the programmed properties between power cycles. Program once and operate as a stand-alone signal conditioner without having to reprogram for every use. This is perfect for turn-key applications. It’s easy to connect the USBPHP-S1 into the data collection system. Input and output signals can be routed through BNC connection or by using the detachable screw terminal connectors.

USBPHP-S1/L(x)H(BN) - High Pass 4-pole Butterworth Narrow Range 10Hz to 1275Hz

Filter & Amplifier
USBPHP-S1/L(x)H(BE) - High Pass 4-pole Butterworth Extended Range 1100Hz to 41.5kHz

Filter & Amplifier
USBPHP-S1/L(x)H(LN) - High Pass 4-pole Bessel Narrow Range 10Hz to 1275Hz

Filter & Amplifier
USBPHP-S1/L(x)H(LE) - High Pass 4-pole Bessel Extended Range 1100Hz to 41.5kHz

Filter & Amplifier
USBPHP-S1 Single-Channel fully programmable instrumentation amplifier High Pass filter
USBPHP-S1/L(x)H(BN) High Pass 4-pole Butterworth Narrow Range 10Hz to 1275Hz
USBPHP-S1/L(x)H(BE) High Pass 4-pole Butterworth Extended Range 1100Hz to 41.5kHz
USBPHP-S1/L(x)H(LN) High Pass 4-pole Bessel Narrow Range 10Hz to 1275Hz
USBPHP-S1/L(x)H(LE) High Pass 4-pole Bessel Extended Range 1100Hz to 41.5kHz
