USBPGF-S1 - Single-Channel fully programmable instrumentation amplifier Low Pass filter

Main features

  • Differential or single-ended input
  • ±10Vmax Signal Input and Output with input protection up to ±40V
  • Software-programmable instrumentation amplifier gains of 1 to 1000
  • Compatible with any 12, 16, or 24-bit A/D converter devices
  • Windows compatible menu setup software and SDK included
  • Software select any low pass corner frequency from 0.1 Hz to the maximum with no steps
  • Low pass filter available as an 8-Pole Bessel to 66 kHz maximum corner frequency
  • Low pass filter available as an 8-Pole Butterworth to 100 kHz maximum corner frequency
  • Low pass filter available as an 8-Pole Cauer/Elliptic to 50 kHz maximum corner frequency
  • Low pass filter available as an8-Pole Cauer/Elliptic to 100 kHz maximum corner frequency
  • Low pass filter available as an 8-Pole Linear Phase to 100 kHz maximum corner frequency
  • Low pass filter available as an 8-Pole Linear Phase to 200 kHz maximum corner frequency
  • Filter rejection band attenuation up to -90dB
  • Low pass Fc may be controlled with an external clock for tracking filter applications
  • Software selectable DC coupling or AC couple passive high pass filter
  • Software control low pass synchronization to the A/D sampling rate to eliminate sampling errors
  • USB 2.0 compatible communication for setup and control
  • Non-volatile configuration retains all settings through power cycles
  • Does not need to be attached to a PC to operate
  • DC power source allows for convenient 9 to 12V battery operation
  • Includes universal AC/DC power adapter use anywhere on the planet
  • Factory calibrated for unity gain and very low DC offset filter output
  • Use multiple USBPGF-S1 units for multi-channel applications
Price request Datasheet Ask a question

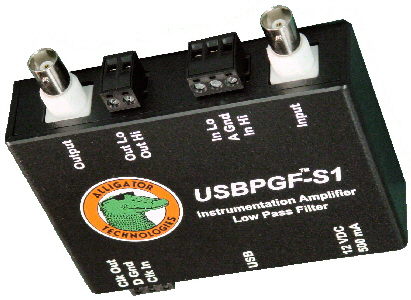

The USBPGF-S1 is a stand-alone USB controllable module consisting of a high-quality instrumentation amplifier, a low pass filter, and optional AC coupling. It is compatible with all popular A/D converter devices. The USBGF-S1 is powered with 9 to 12VDC so it can be connected to a battery voltage source or the supplied 115-220VAC adapter may be used for operation with wall power anywhere in the world.

When programmed from the USB port, the USBPGF-S1 will remember all of the programmed properties between power cycles. Program once and operate as a stand-alone signal conditioner without having to reprogram for every use. This is perfect for turn-key applications. It’s easy to connect the USBPGF-S1 into the data collection system. Input and output signals can be routed through BNC connection or by using the detachable screw terminal connectors.

USBPGF-S1/B - 8-pole Butterworth 100kHz bandwidth

Filter & Amplifier
USBPGF-S1/L - 8-pole Bessel 66kHz bandwidth

Filter & Amplifier
USBPGF-S1/CE - 8-pole Cauer Elliptic 50kHz bandwidth

Filter & Amplifier
USBPGF-S1/HC - 8-pole Cauer Elliptic 100kHz bandwidth

Filter & Amplifier
USBPGF-S1/LP - 8-pole Linear Phase 100kHz bandwidth

Filter & Amplifier
USBPGF-S1/HLP - 8-pole Linear Phase 200kHz bandwidth

Filter & Amplifier
USBPGF-S1 Single-Channel fully programmable instrumentation amplifier Low Pass filter
USBPGF-S1/B 8-pole Butterworth 100kHz bandwidth
USBPGF-S1/L 8-pole Bessel 66kHz bandwidth
USBPGF-S1/CE 8-pole Cauer Elliptic 50kHz bandwidth
USBPGF-S1/HC 8-pole Cauer Elliptic 100kHz bandwidth
USBPGF-S1/LP 8-pole Linear Phase 100kHz bandwidth
USBPGF-S1/HLP 8-pole Linear Phase 200kHz bandwidth
