USBPBP-S1 - Single-Channel fully programmable instrumentation amplifier Band Pass filter

Main features

  • Differential or single-ended input
  • ±10Vmax Signal Input and Output with input protection up to ±40V
  • Software-programmable instrumentation amplifier gains of 1 to 1000
  • Compatible with any 12, 16, or 24-bit A/D converter devices
  • Windows compatible menu setup software and SDK included
  • Software select any low pass corner frequency from 0.1 Hz to the maximum with no steps
  • Low pass filter available as an 8-Pole Bessel to 66 kHz maximum corner frequency
  • Low pass filter available as an 8-Pole Butterworth to 100 kHz maximum corner frequency
  • Low pass filter available as an 8-Pole Cauer/Elliptic to 50 kHz maximum corner frequency
  • Low pass filter available as an8-Pole Cauer/Elliptic to 100 kHz maximum corner frequency
  • Low pass filter available as an 8-Pole Linear Phase to 100 kHz maximum corner frequency
  • Low pass filter available as an 8-Pole Linear Phase to 200 kHz maximum corner frequency
  • Software select any high pass Fc from 10 Hz to 1275 Hz (N) or 1100 Hz to 41.5 kHz (E)
  • High pass filter available as a 4-Pole Butterworth
  • High pass filter available as a 4-Pole Bessel
  • Filter rejection band attenuation up to -90dB
  • Low pass Fc may be controlled with an external clock for tracking filter applications
  • Software control low pass synchronization to the A/D sampling rate to eliminate sampling errors
  • USB 2.0 compatible communication for setup and control
  • Non-volatile configuration retains all settings through power cycles
  • Does not need to be attached to a PC to operate
  • DC power source allows for convenient 9 to 12V battery operation
  • Includes universal AC/DC power adapter use anywhere on the planet
  • Factory calibrated for unity gain and very low DC offset filter output

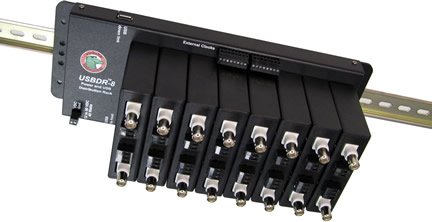

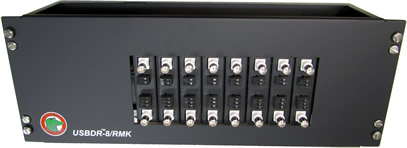

  • Use multiple USBPBP-S1 units for multi-channel applications
Price request Datasheet Ask a question

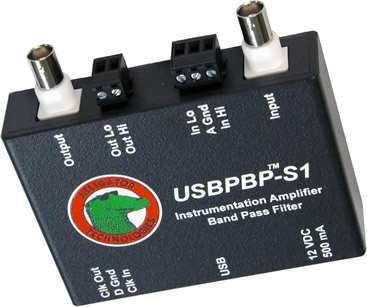

The USBPBP-S1 stand alone USB controllable module provides a single channel of , high-pass, low-pass filtering and high-quality instrumentation amplifier for front-end signal conditioning compatible with all popular A/D converter devices. The USBPBP-S1 is powered with 9 to 12VDC so it can be connected to a battery voltage source or the supplied 115-220VAC adapter may be used for operation with wall power anywhere in the world.

When programmed from the USB port, the USBPBP-S1 will remember all of the programmed properties between power cycles. Program once and operate as a stand-alone signal conditioner without having to reprogram for every use. This is perfect for turn-key applications. It’s easy to connect the USBPBP-S1 into the data collection system. Input and output signals can be routed through BNC connection or by using the detachable screw terminal connectors.

USBPBP-S1/L(B)H(xy) - Low Pass 8-pole Butterworth 100kHz bandwidth

Filter & Amplifier
USBPBP-S1/L(L)H(xy) - Low Pass 8-pole Bessel 66kHz bandwidth

Filter & Amplifier
USBPBP-S1/L(CE)H(xy) - Low Pass 8-pole Cauer Elliptic 50kHz bandwidth

Filter & Amplifier
USBPBP-S1/L(HC)H(xy) - Low Pass 8-pole Cauer Elliptic 100kHz bandwidth

Filter & Amplifier
USBPBP-S1/L(LP)H(xy) - Low Pass 8-pole Linear Phase 100kHz bandwidth

Filter & Amplifier
USBPBP-S1/L(HLP)H(xy) - Low Pass 8-pole Linear Phase 200kHz bandwidth

Filter & Amplifier
USBPBP-S1/L(x)H(BN) - High Pass 4-pole Butterworth Narrow Range 10Hz to 1275Hz

Filter & Amplifier
USBPBP-S1/L(x)H(BE) - High Pass 4-pole Butterworth Extended Range 1100Hz to 41.5kHz

Filter & Amplifier
USBPBP-S1/L(x)H(LN) - High Pass 4-pole Bessel Narrow Range 10Hz to 1275Hz

Filter & Amplifier
USBPBP-S1/L(x)H(LE) - High Pass 4-pole Bessel Extended Range 1100Hz to 41.5kHz

Filter & Amplifier
USBPBP-S1 Single-Channel fully programmable instrumentation amplifier Band Pass filter
USBPBP-S1/L(B)H(xy) Low Pass 8-pole Butterworth 100kHz bandwidth
USBPBP-S1/L(L)H(xy) Low Pass 8-pole Bessel 66kHz bandwidth
USBPBP-S1/L(CE)H(xy) Low Pass 8-pole Cauer Elliptic 50kHz bandwidth
USBPBP-S1/L(HC)H(xy) Low Pass 8-pole Cauer Elliptic 100kHz bandwidth
USBPBP-S1/L(LP)H(xy) Low Pass 8-pole Linear Phase 100kHz bandwidth
USBPBP-S1/L(HLP)H(xy) Low Pass 8-pole Linear Phase 200kHz bandwidth
USBPBP-S1/L(x)H(BN) High Pass 4-pole Butterworth Narrow Range 10Hz to 1275Hz
USBPBP-S1/L(x)H(BE) High Pass 4-pole Butterworth Extended Range 1100Hz to 41.5kHz
USBPBP-S1/L(x)H(LN) High Pass 4-pole Bessel Narrow Range 10Hz to 1275Hz
USBPBP-S1/L(x)H(LE) High Pass 4-pole Bessel Extended Range 1100Hz to 41.5kHz
