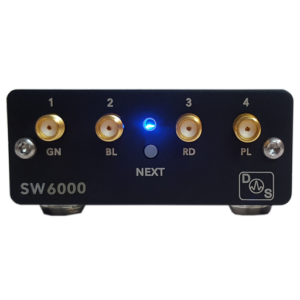

SW6004 - Four port RF switch 6GHz

Main features

  • 10MHz – 6000MHz frequency range
  • 4 Switched SMA RF Ports
  • Max RFC input power: +33 dBm (2.0 Watts)
  • Max Terminated power: +24 dBm
  • Low insertion loss (3dB Typical)
  • Return loss: > 10dB
  • Solid State Reliability
  • Bi-directional
  • Fast switching time
  • Superior Isolation (60dB at 1GHz, 32dB @ 6GHz)
  • LED port status indication
  • Impedance: 50 Ohm
  • Micro-USB Powered
Price request Datasheet Ask a question

The SW6004 RF switch is both USB controlled via SCPI commands, and a front panel select button. Simple and convenient USB power and status LEDs for the user. This 2 watt absorptive SP4T wideband switch is perfect for automated or remote test setups.

Low insertion loss combined with solid-state speed and reliability make this a great upgrade path from old mechanical relay devices.

SW6004 Four port RF switch 6GHz
