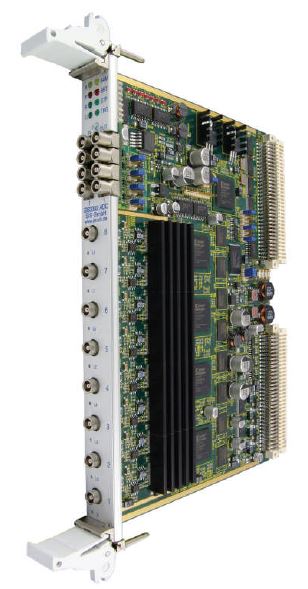

SIS3302 - 8 Channels, 100MS/s, 16-bit VME Digitizer

Main features

  • Single width 6U VME card
  • 8 channels
  • 100 MS/s per channel (1 – 100 MHz external clock, external random clock, 1/10/25/50/100 MHz internal clock)
  • 16-bit resolution # > 13 effective bits
  • 32 MSamples memory/channel
  • 16-bit offset DACs
  •  50 MHz bandwidth
  • Internal/External clock
  • Multi event mode
  • Readout in parallel to acquisition
  • Pre/Post trigger capability
  • Trigger OR output (8 individual thresholds)
  • A32/D32/BLT32/MBLT64/2eVME
  • In field JTAG and JTAG over VME firmware upgrade capability
Price request Datasheet Ask a question

The SIS3302 is an eight channel ADC/digitizer board with a sampling rate of up to 100 MHz (for the individual channel) and a resolution of 16-bit. The board is a single width 6U VME card, which has no special (i.e. non standard VME) voltage requirements.

The flexible combination of DDR2 memory technology data storage in combination with FPGA based data handling/movement allows for a generic design which covers a variety of applications.

SIS3302 8 Channels, 100MS/s, 16-bit VME Digitizer
