SG40000PRO - 40GHz Premium Microwave Generator

Main features

  • Total RF range covering 0.1 – 40GHz
  • Band 1 (SMA): 0.1 to 26.5GHz
  • Band 2 (29.2mm): 26.5 to 40GHz
  • Calibrated power control (LF – 26.5Ghz): -25dBm to +13dBm
  • Calibrated power control (26.5 – 40GHz): -18dBm to +13dBm
  • Uncalibrated max power: +15dBm typical
  • Digital attenuator step size: 0.5dB
  • Variable attenuator resolution (vernier control): ~0.05dB
  • Excellent phase noise: -92dBc @ 20GHz @ 10KHz offset
  • Extremely small frequency step size: 2Hz
  • Temperature compensated output
  • Calibrated power (LF-26.5GHz band) absolute accuracy: ±1.0dB typical
  • Calibrated power (26.5-40GHz band) absolute accuracy: ±1.5dB typical
  • Ultra-low-noise 100MHz VCXO locked to internal OCXO or external 10MHz reference
  • Internal 10MHz precision oven-controlled oscillator reference (±10PPB stability)
  • Compact powder-coated laser-etched enclosure
  • External dedicated sweep trigger port (MCX)
  • No-host-needed portable frequency sweeping support
  • Ethernet remote operation (DHCP default, static IP config)
  • Windows control software included (USB & Network enabled)
  • SCPI command aware via USB-C virtual COM port for remote control
  • Front controls and bright OLED display for stand-alone usage
  • Completely powered from Dual USB-C, no DC adapter required!
Price request Datasheet Ask a question

The PRO version offers full-band frequency coverage down to 100MHz, a more stable frequency reference, and more robust DC input options than the standard SG40000L.

Like our SG6000 product line, this RF generator is fully programmable via SCPI commands, or the front panel interface making it more flexible than any competing product. With an all-new low-phase-noise synthesizer, the SG40000PRO is aimed at phase-noise sensitive applications in C, X, Ku, K, and Ka-band development, testing, and converting.

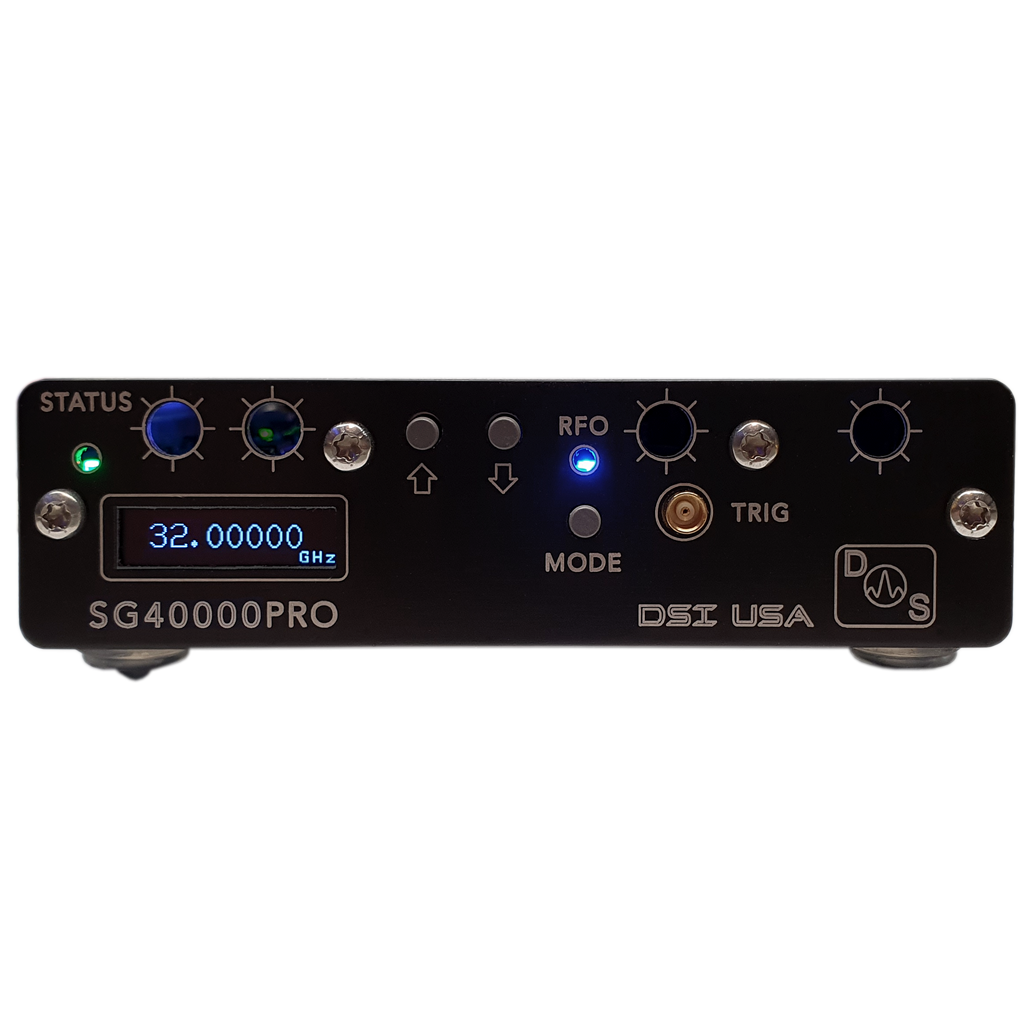

SG40000PRO 40GHz Premium Microwave Generator
