SG40000L - 40GHz Premium Microwave Generator

Main features

  • Output frequency range covering 25 – 40GHz
  • Power control (25 – 40Ghz calibrated): -10dBm to +15dBm (vernier and 0.5db steps)
  • Excellent phase noise: -82dBc @ 35GHz @ 10KHz offset
  • Sub-harmonic levels: < -12dBc typical
  • Extremely small frequency step size: 2Hz
  • Ultra-low-noise 100MHz VCXO locked to internal TCXO or external 10MHz reference
  • Internal precision high-frequency reference source (±280PPB 10MHz)
  • MCX input for 10MHz clock source
  • Compact powder-coated laser-etched enclosure
  • Precision 2.92mm output jack (3.5mm compatible)
  • Ethernet remote operation (DHCP)
  • Windows control software included (USB & Network enabled)
  • SCPI command aware via USB-C virtual COM port for remote control
  • Front controls and bright OLED display for stand-alone usage
  • Completely powered from USB-C, no DC adapter required!
Price request Datasheet Ask a question

The SG40000L offers the same low-noise performance of the SG30000L, but with a higher frequency band covering 25 to 40GHz .

Like our SG6000 product line, this source is fully programmable via SCPI commands, or the front panel interface, making it more flexible than any competing product. High output power, wide bandwidth, and ultra-compact size make this the best value 40GHz source on the market.

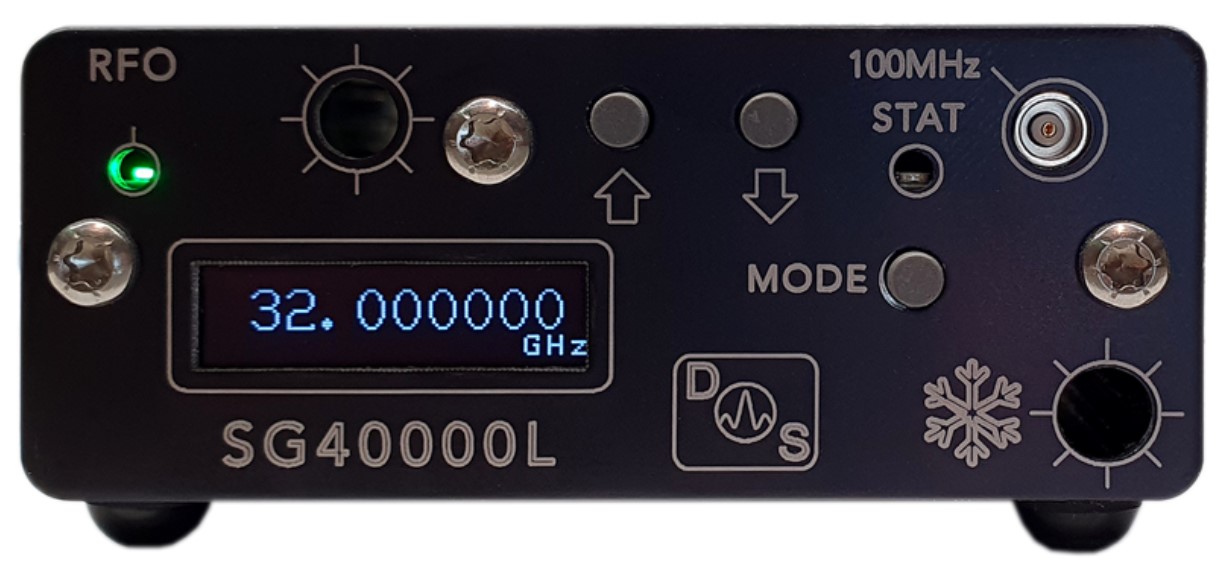

SG40000L 40GHz Premium Microwave Generator
