SG30000L - 30GHz Microwave Generator

Main features

  • Total frequency range: 14GHz to 30GHz
  • Low phase-noise: -90dBm @ 10KHz offset @ 30GHz
  • Small frequency step size: 2Hz
  • Power control (14 – 30GHz calibrated band): -15dBm to +13dBm (0.1dB steps & vernier)
  • Typical harmonic levels: < -15dBc
  • Input voltage: 5V-1.75A USB-C (No extra DC adapter required)
  • Ultra-low-noise internal 10MHz reference sources
  • Reference input: 10MHz MCX Connectors
Price request Datasheet Ask a question

This standard version offers the same low-noise performance of the SG30000PRO, but without the costly high-band attenuation and switching . Like our SG6000 product line, this RF generator is fully programmable via SCPI commands, or the front panel interface, making it more flexible than any competing product.

High output power, wide bandwidth, and ultra-compact size make this the best value 30GHz source on the market

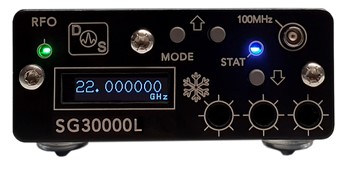

SG30000L 30GHz Microwave Generator
