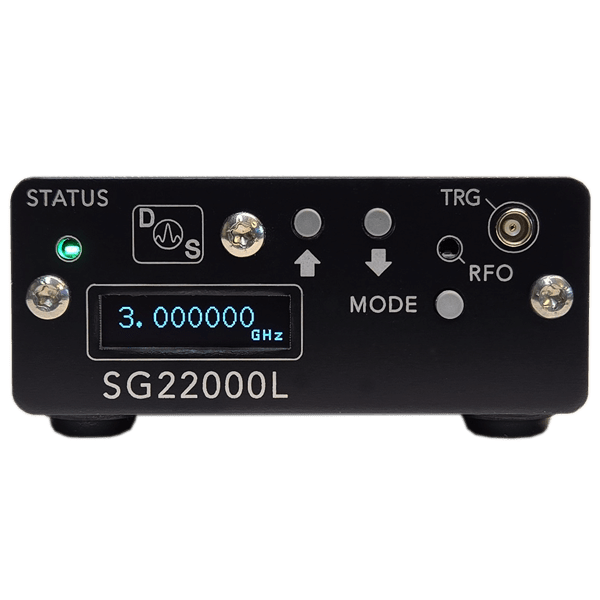

The incredibly compact SG22000L Microwave Signal Generator delivers the widest frequency coverage on the market for its size and price. The single output band covers the ENTIRE range of 60 to 22000+ MHz.
Output power is calibrated between -5 and +13dBm with < 0.1dB resolution.
The crisp OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. The output waveform is fully synthesized using modern fractional-N synthesis.
This synthesized signal source can automatically detect and accept an external 10 MHz reference OR it can use its own ±280PPB internal 10MHz TCXO reference. Like most of our products, the SG22000L easily fits in the palm of your hand, making it a truly portable and bench-space-saving device. Ethernet now comes standard.
