SCMXIF - Universal Interface Board

Main features

  • 26-pin ribbon cable input to 26 screw terminals for discrete wire
  • Rail DIN version
Price request Datasheet Ask a question

The SCMXIF is a universal interface board which converts a 26-pin ribbon cable input to 26 screw terminals for discrete wire. It can be mounted on the back of the SCMXRK-002 mounting rack (SCMXIF) or on a DIN rail (SCMXIF-DIN). Required mounting hardware is included. Use SCMXCA004-XX cable

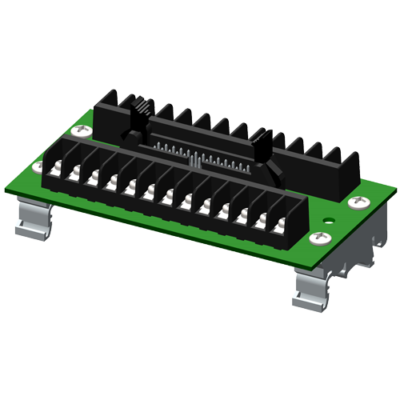

SCMXIF-DIN - Rail DIN universal interface board SCMXIF-DIN - Rail DIN universal interface board

Board

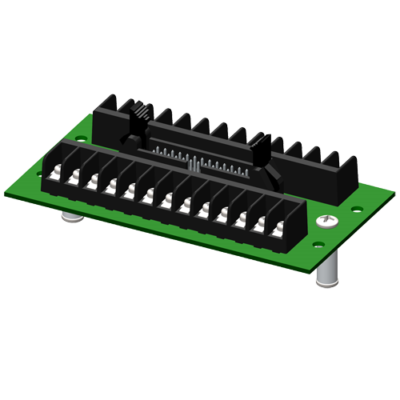

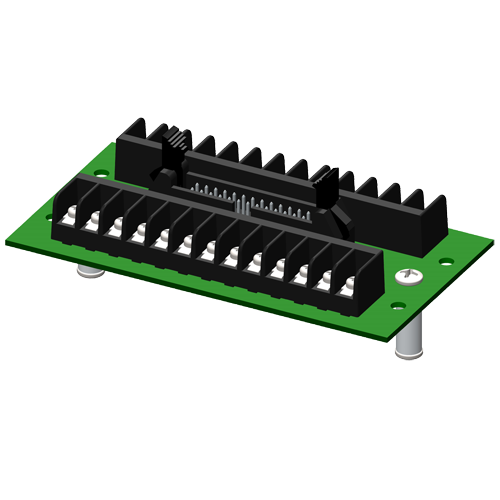

SCMXIF Universal Interface Board

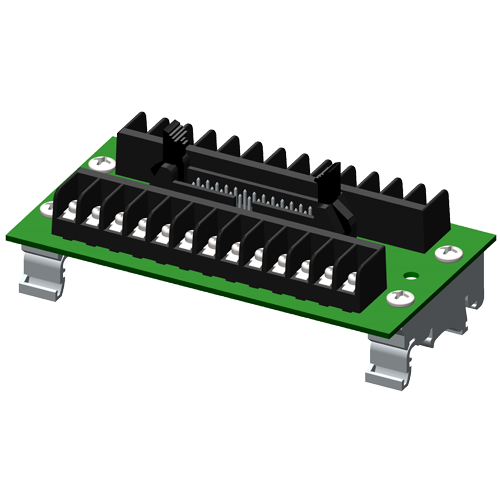

SCMXIF-DIN Rail DIN universal interface board
