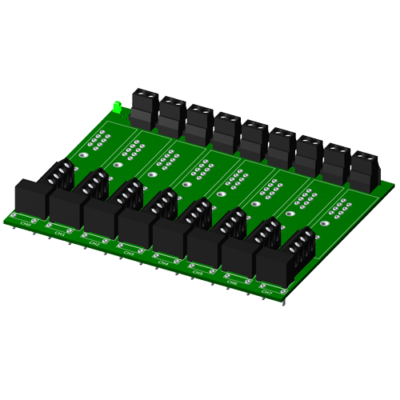

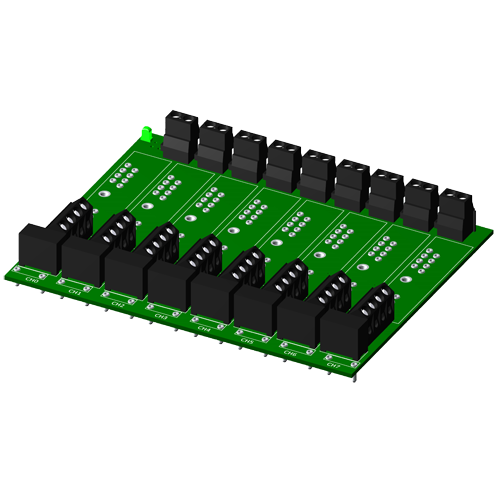

SCMPB07 - 8-channel backpanel, No mounting hardware included

Main features

  • 8 Slots for 5B signal conditioners, High density
  • DIN Rail option
Price request Datasheet Ask a question

The SCMPB07 8-channel high-density backpanel can accept any of the SCM5B analog modules in any mixture. Its overall width is 5.5 inches (139.7mm) versus 10 inches (254mm) for the SCMPB05 and SCMPB06 8-channel backpanels.

Separate analog signal paths are provided for each channel. Each channel provides four high-density screw terminals for field connections and two high-density screw terminals for host system connection. It also provides a jumper on each channel to optionally connect or isolate each module’s I/O common from other channel’s I/O common and/or power common.

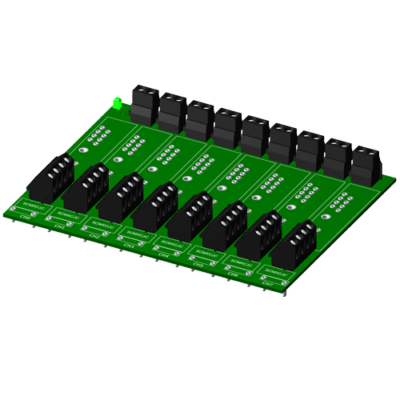

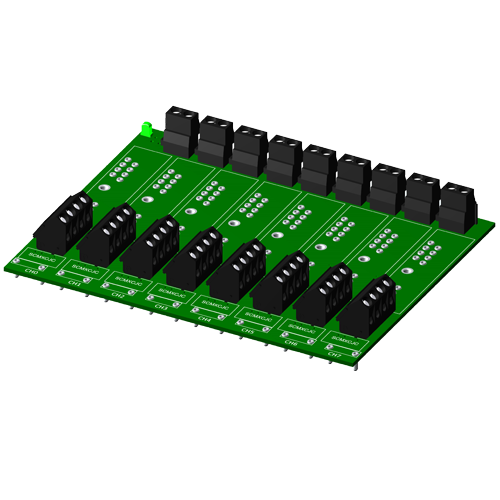

SCMPB07-1 - 8-channel  backpanel  without   cold  junction  compensation circuits. Use when cost  savings is desired and thermocouple input modules SCM5B37 and SCMPB47 will not be used SCMPB07-1 - 8-channel backpanel without cold junction compensation circuits. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCMPB47 will not be used

Backpanel

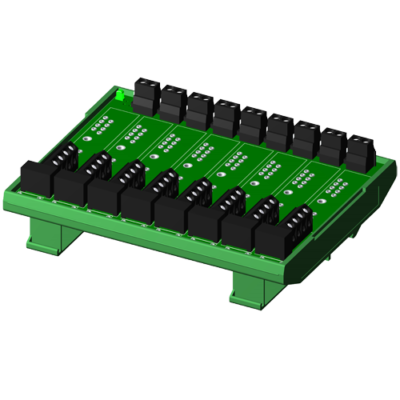

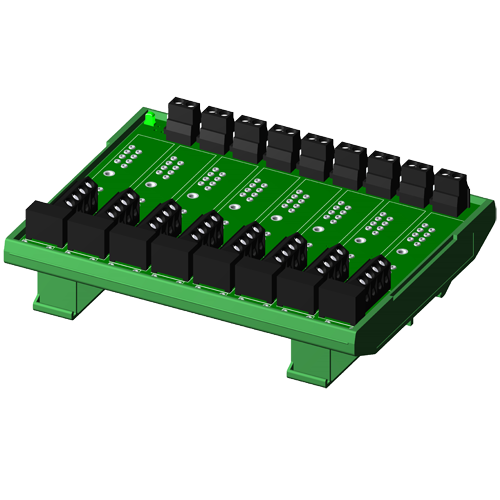

SCMPB07-2 - 8-channel  backpanel  with  DIN  rail  mounting  hardware. Shipped fully  assembled. SCMPB07-2 - 8-channel backpanel with DIN rail mounting hardware. Shipped fully assembled.

Backpanel

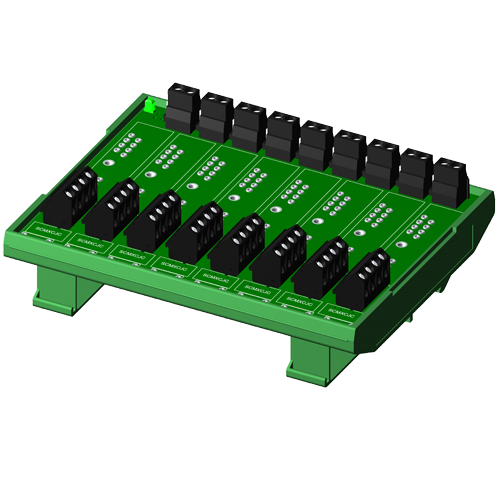

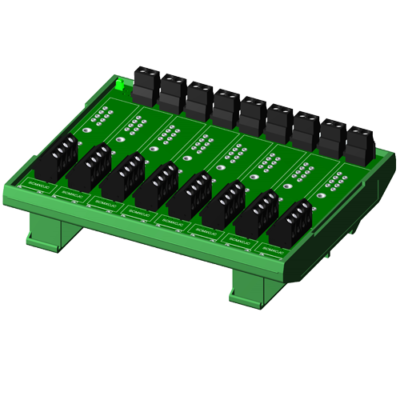

SCMPB07-3 - 8-channel  backpanel  without   cold  junction  compensation circuits and with DIN rail mounting hardware. Shipped fully assembled SCMPB07-3 - 8-channel backpanel without cold junction compensation circuits and with DIN rail mounting hardware. Shipped fully assembled

Backpanel

SCMPB07 8-channel backpanel, No mounting hardware included
SCMPB07-1 8-channel backpanel without cold junction compensation circuits. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCMPB47 will not be used
SCMPB07-2 8-channel backpanel with DIN rail mounting hardware. Shipped fully assembled.
SCMPB07-3 8-channel backpanel without cold junction compensation circuits and with DIN rail mounting hardware. Shipped fully assembled
