SCMPB04 - Dual channel backpanel. No mounting hardware included.

Main features

  • 2 Slots for 5B signal conditioners
  • DIN Rail Mounting
Price request Datasheet Ask a question

The SCMPB04 is dual channel mounting panels for the SCM5B modules

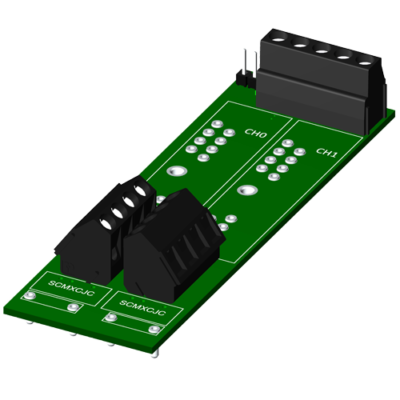

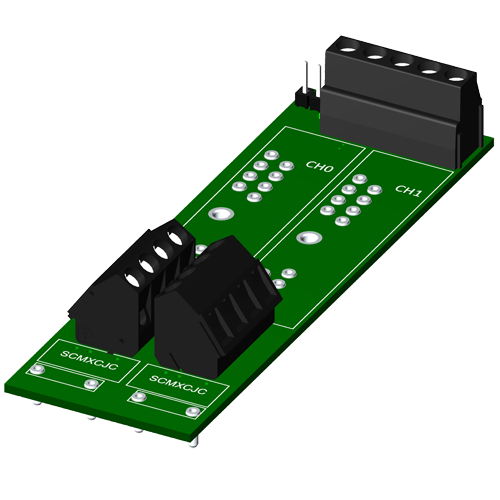

SCMPB04-1 - Dual channel backpanel without cold junction compensation circuits. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCMPB47 will not be used. No mounting hardware included.

Backpanel

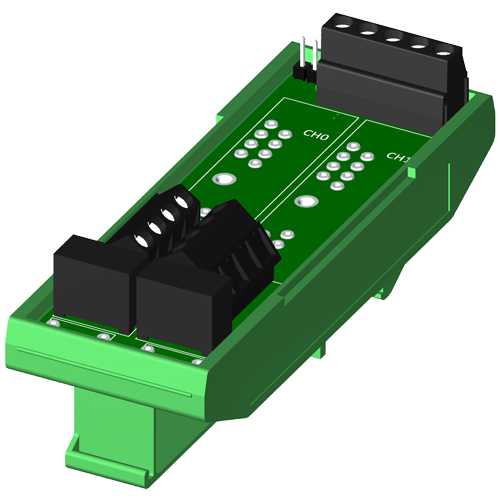

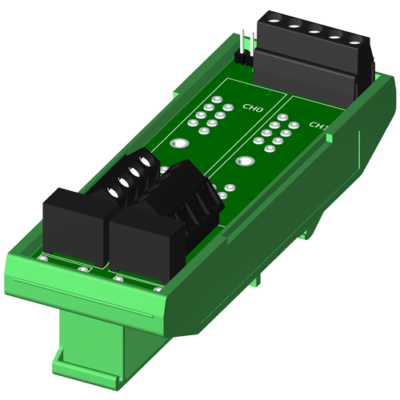

SCMPB04-2 - Dual channel backpanel with  DIN rail mounting hardware. Shipped fully assembled. SCMPB04-2 - Dual channel backpanel with DIN rail mounting hardware. Shipped fully assembled.

Backpanel

SCMPB04-3 - Dual channel backpanel  without cold junction compensation circuits and with DIN rail mounting hardware. Shipped fully assembled. SCMPB04-3 - Dual channel backpanel without cold junction compensation circuits and with DIN rail mounting hardware. Shipped fully assembled.

Backpanel

SCMXBEFE - Base element with snap foot SCMXBEFE - Base element with snap foot

Backpanel

SCMXSE - Side element SCMXSE - Side element

Backpanel

SCMXVS - Connection pins SCMXVS - Connection pins

Backpanel

SCMXBE - Base  element without snap foot SCMXBE - Base element without snap foot

Backpanel

SCMPB04 Dual channel backpanel. No mounting hardware included.
SCMPB04-1 Dual channel backpanel without cold junction compensation circuits. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCMPB47 will not be used. No mounting hardware included.
SCMPB04-2 Dual channel backpanel with DIN rail mounting hardware. Shipped fully assembled.
SCMPB04-3 Dual channel backpanel without cold junction compensation circuits and with DIN rail mounting hardware. Shipped fully assembled.
SCMXBEFE-5B. Base element with snap foot
SCMXSE-5B. Side element
SCMXVS-5B. Connection pins
SCMXBE-5B. Base element without snap foot
