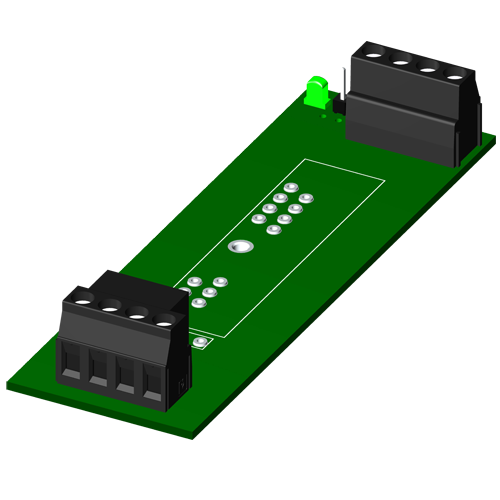

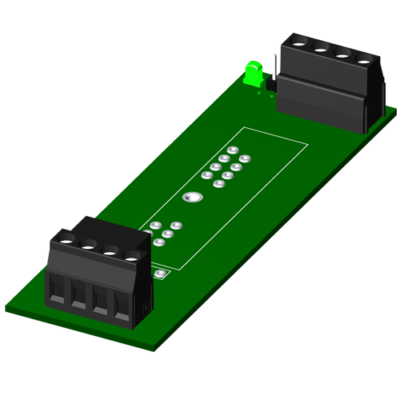

SCMPB03 - Single channel backpanel. No mounting hardware included.

Main features

  • 1 Slot for 5B signal conditioners
  • DIN Rail Mounting
Price request Datasheet Ask a question

The SCMPB03 is single channel mounting panels for the SCM5B modules, for DIN rail mounting.

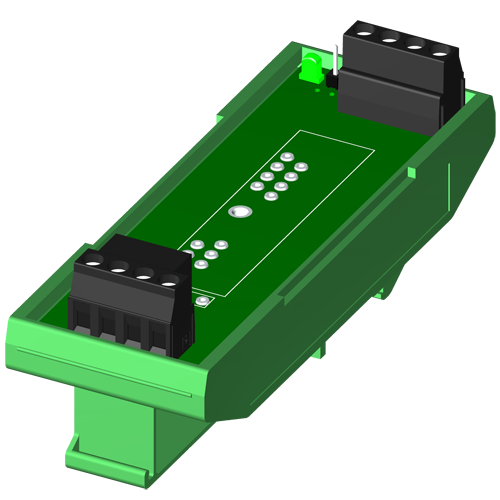

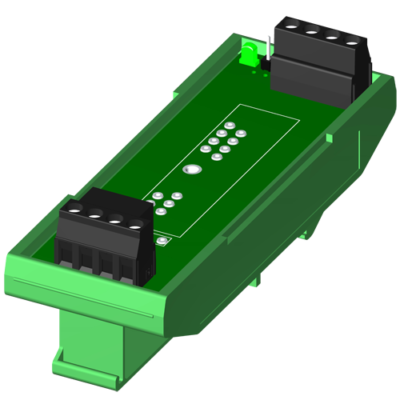

SCMPB03-2 - Single channel backpanel wi th DIN rail mounting hardware. Shipped fully assembled. SCMPB03-2 - Single channel backpanel wi th DIN rail mounting hardware. Shipped fully assembled.

Backpanel

SCMXBEFE - Base element with snap foot SCMXBEFE - Base element with snap foot

Backpanel

SCMXSE - Side element SCMXSE - Side element

Backpanel

SCMXVS - Connection pins SCMXVS - Connection pins

Backpanel

SCMXBE - Base  element without snap foot SCMXBE - Base element without snap foot

Backpanel

SCMPB03 Single channel backpanel. No mounting hardware included.
SCMPB03-2 Single channel backpanel wi th DIN rail mounting hardware. Shipped fully assembled.
SCMXBEFE-5B Base element with snap foot
SCMXSE-5B Side element
SCMXVS-5B Connection pins
SCMXBE-5B Base element without snap foot
