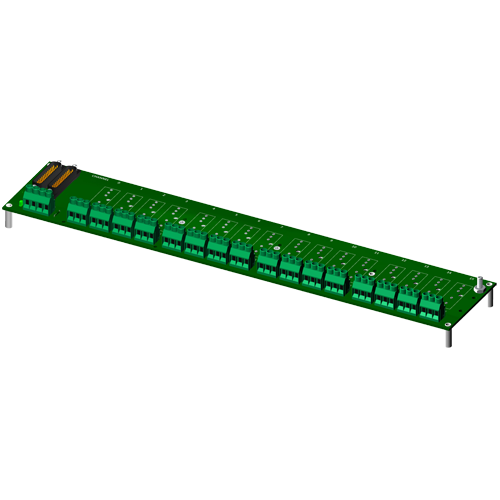

SCM7BP16 - Sixteen channel backpanel with standoffs for mounting.

Main features

  • 16 Slots for 7B signal conditioners
  • Input Voltage Range 14V or 35VDC
Price request Datasheet Ask a question

The SCM7BP16 is a sixteen slots backpanel and can accept any of the SCM7B analog modules.

SCM7BP16-DIN - Sixteen channel backpanel with DIN rail mounting clips. SCM7BP16-DIN - Sixteen channel backpanel with DIN rail mounting clips.

Backplane

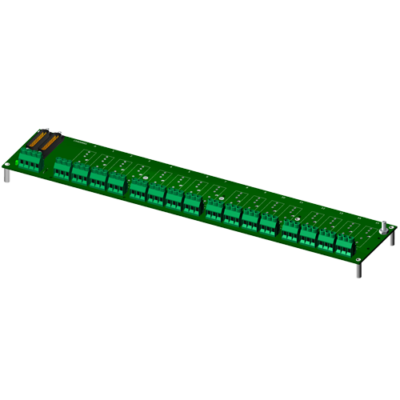

SCM7BP16 Sixteen channel backpanel with standoffs for mounting.
SCM7BP16-DIN Sixteen channel backpanel with DIN rail mounting clips.
