The SCM7BP02 is a two slots backpanel. Unlike other backpanels available, both the system and field side sides have screw terminal connectors able to accept discrete wire (10-24 AWG). The backpanels can be ordered with standoffs to allow mounting, using a #6 or smaller screw, or with DIN rail mounting hardware

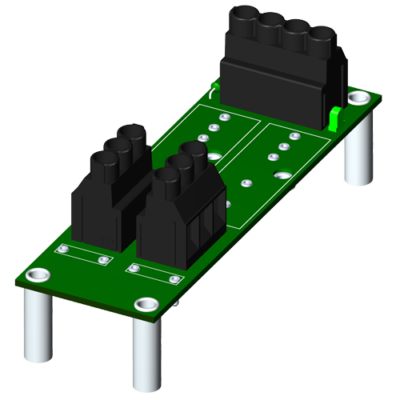

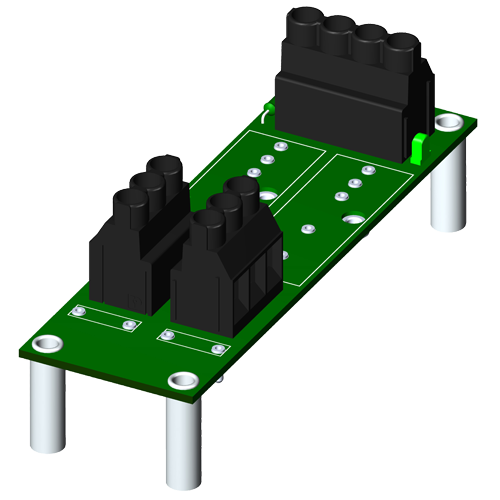

SCM7BP02 - Dual channel backpanel with standoffs for mounting.
Main features
- 2 Slots for 7B signal conditioners
- Input Voltage Range 14V or 35VDC
SCM7BP02-4 - Dual channel backpanel. No mounting hardware included. Backplane |
|

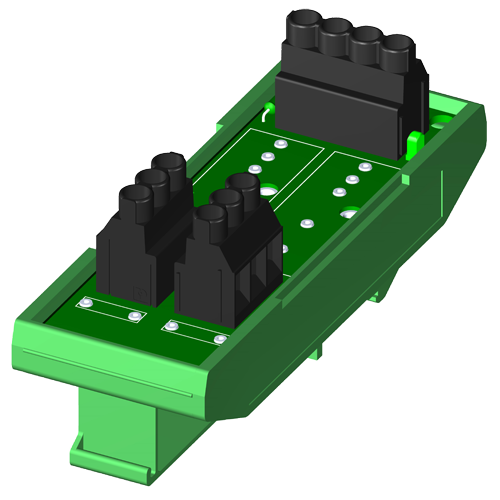

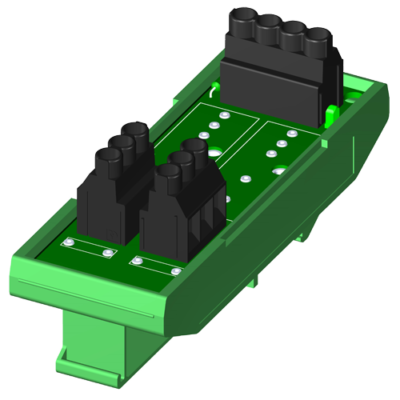

SCM7BP02-DIN - Dual channel backpanel with DIN rail mounting hardware Backplane |
SCM7BP02 | Dual channel backpanel with standoffs for mounting. |
SCM7BP02-4 | Dual channel backpanel. No mounting hardware included. |
SCM7BP02-DIN | Dual channel backpanel with DIN rail mounting hardware |
