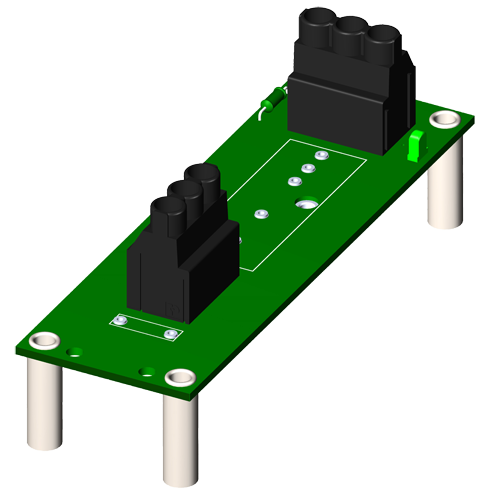

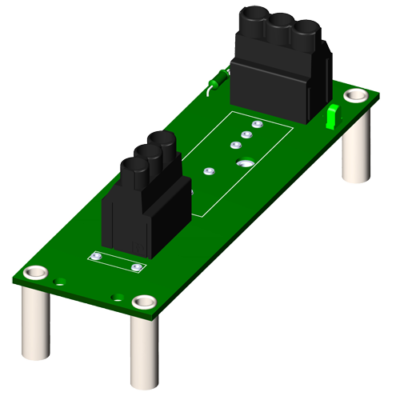

SCM7BP01 - Single channel backpanel with standoffs for mounting.

Main features

  • 1 Slots for 7B signal conditioners
  • Input Voltage Range 14V or 35VDC
Price request Datasheet Ask a question

The SCM7BP01 is 1 backpanel. Unlike other backpanels available, both the system and field side sides have screw terminal connectors able to accept discrete wire (10-24 AWG). The backpanels can be ordered with standoffs to allow mounting, using a #6 or smaller screw, or with DIN rail mounting hardware

SCM7BP01-4 - Single channel backpanel. No mounting hardware included.

Backplane

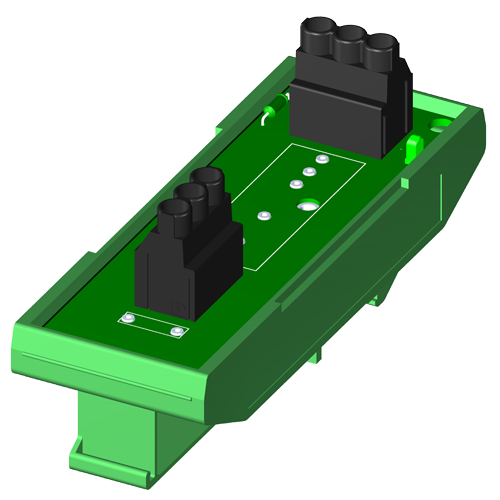

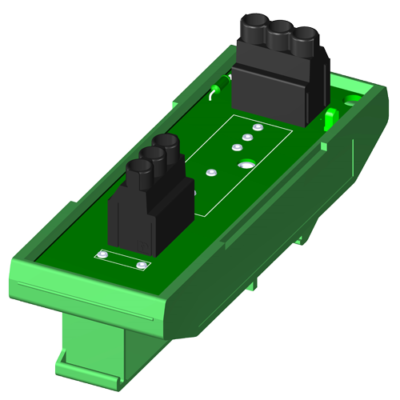

SCM7BP01-DIN - Single channel backpanel with DIN rail mounting hardware SCM7BP01-DIN - Single channel backpanel with DIN rail mounting hardware

Backplane

SCM7BP01 Single channel backpanel with standoffs for mounting.
SCM7BP01-4 Single channel backpanel. No mounting hardware included.
SCM7BP01-DIN Single channel backpanel with DIN rail mounting hardware
