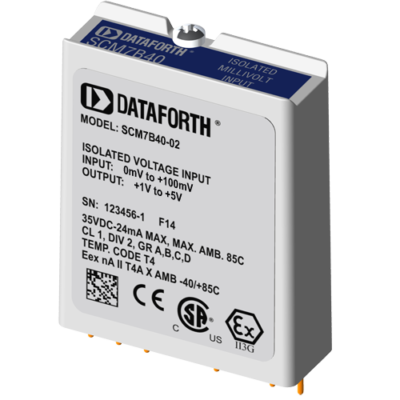

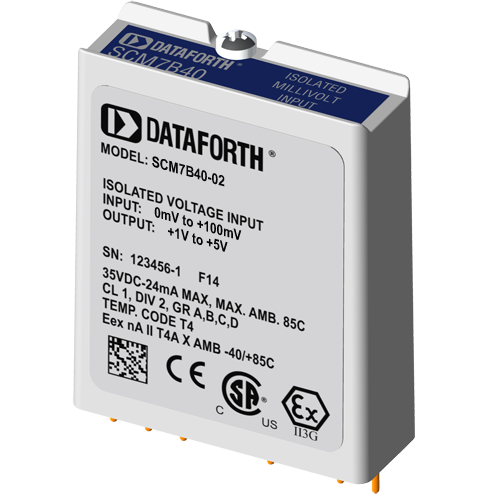

SCM7B40/41 - Isolated Analog Voltage Input Modules, Wide Bandwidth

Main features

Accepts Millivolt or Voltage Inputs
Provides High-Level Voltage Outputs
10kHz Bandwidth
1500Vrms Transformer Isolation
Accuracy, ±0.03% of Span Typical, ±0.1% Max
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 120Vrms Continuous
Easy DIN Rail Mounting
CSA Certified, FM Approved
CE and ATEX Compliant

Option

Clear

Each SCM7B40/41 voltage input module accepts one channel of analog voltage input which is filtered, isolated, amplified, and converted to a high-level analog voltage for output to the process control system.

These modules incorporate a five-pole filtering approach to maximize both time and frequency response by taking advantage of both Thomson (Bessel) and Butterworth characteristics. One pole of the filter is on the field side of the isolation barrier; four are on the process control system side.

After the initial field-side filtering, the input signal is chopped by a proprietary chopper circuit and transferred across the transformer isolation barrier, suppressing transmission of common mode spikes and surges. The signal is then reconstructed and filtered for process control system output.

Modules accept a wide 14 – 35VDC power supply range (+24VDC nominal). Their compact packages (2.13″x1.705″x0.605″ max) save space and are ideal for high channel density applications. They are designed for easy DIN rail mounting using any of the “-DIN” backpanels.

	SCM7B40-02 - Input range: 0 to +100 mV Output range: +1 to +5 V 7B
	SCM7B40-02A - Input range: 0 to +100 mV Output range: 0 to +5 V 7B
	SCM7B40-02D - Input range: 0 to +100 mV Output range: 0 to +10 V 7B
	SCM7B40-03 - Input range: 0 to +1 V Output range: +1 to +5 V 7B
	SCM7B40-03A - Input range: 0 to +1 V Output range: 0 to +5 V 7B
	SCM7B40-03D - Input range: 0 to +1 V Output range: +1 to +10 V 7B
	SCM7B40-07 - Input range: -100 mV to +100 mV Output range: +1 to +5 V 7B
	SCM7B40-07A - Input range: -100 mV to +100 mV Output range: 0 to +5 V 7B
	SCM7B40-07D - Input range: -100 mV to +100 mV Output range: 0 to +10 V 7B
	SCM7B40-08 - Input range: -1 V to +1 V Output range: +1 to +5 V 7B
	SCM7B40-08A - Input range: -1 V to +1 V Output range: 0 to +5 V 7B
	SCM7B40-08D - Input range: -1 V to +1 V Output range: 0 to +10 V 7B
	SCM7B41-01 - Input range: 0 V to +10 V Output range: +1 to +5 V 7B
	SCM7B41-01A - Input range: 0 V to +10 V Output range: 0 to +5 V 7B
	SCM7B41-01D - Input range: 0 V to +10 V Output range: 0 to +10 V 7B
	SCM7B41-02 - Input range: -5 V to +5 V Output range: +1 to +5 V 7B
	SCM7B41-02A - Input range: -5 V to +5 V Output range: 0 to +5 V 7B
	SCM7B41-02D - Input range: -5 V to +5 V Output range: 0 to +10 V 7B
	SCM7B41-03 - Input range: -10 to +10 V Output range: +1 to +5 V 7B
	SCM7B41-03A - Input range: -10 to +10 V Output range: 0 to +5 V 7B
	SCM7B41-03D - Input range: -10 to +10 V Output range: 0 to +10 V 7B
	SCM7B41-04 - Input range: 0 to +5 V Output range: +1 to +5 V 7B
	SCM7B41-04A - Input range: 0 to +5 V Output range: 0 to +5 V 7B
	SCM7B41-04D - Input range: 0 to +5 V Output range: 0 to +10 V 7B
	SCM7B41-05 - Input range: 0 to +20 V Output range: +1 to +5 V 7B
	SCM7B41-05A - Input range: 0 to +20 V Output range: 0 to +5 V 7B
	SCM7B41-05D - Input range: 0 to +20 V Output range: 0 to +10 V 7B
	SCM7B41-06 - Input range: 0 to +40 V Output range: +1 to +5 V 7B
	SCM7B41-06A - Input range: 0 to +40 V Output range: 0 to +5 V 7B
	SCM7B41-06D - Input range: 0 to +40 V Output range: 0 to +10 V 7B

SCM7B40/41	Isolated Analog Voltage Input Modules, Wide Bandwidth
SCM7B40-02	Input range: 0 to +100 mV Output range: +1 to +5 V
SCM7B40-02A	Input range: 0 to +100 mV Output range: 0 to +5 V
SCM7B40-02D	Input range: 0 to +100 mV Output range: 0 to +10 V
SCM7B40-03	Input range: 0 to +1 V Output range: +1 to +5 V
SCM7B40-03A	Input range: 0 to +1 V Output range: 0 to +5 V
SCM7B40-03D	Input range: 0 to +1 V Output range: +1 to +10 V
SCM7B40-07	Input range: -100 mV to +100 mV Output range: +1 to +5 V
SCM7B40-07A	Input range: -100 mV to +100 mV Output range: 0 to +5 V
SCM7B40-07D	Input range: -100 mV to +100 mV Output range: 0 to +10 V
SCM7B40-08	Input range: -1 V to +1 V Output range: +1 to +5 V
SCM7B40-08A	Input range: -1 V to +1 V Output range: 0 to +5 V
SCM7B40-08D	Input range: -1 V to +1 V Output range: 0 to +10 V
SCM7B41-01	Input range: 0 V to +10 V Output range: +1 to +5 V
SCM7B41-01A	Input range: 0 V to +10 V Output range: 0 to +5 V
SCM7B41-01D	Input range: 0 V to +10 V Output range: 0 to +10 V
SCM7B41-02	Input range: -5 V to +5 V Output range: +1 to +5 V
SCM7B41-02A	Input range: -5 V to +5 V Output range: 0 to +5 V
SCM7B41-02D	Input range: -5 V to +5 V Output range: 0 to +10 V
SCM7B41-03	Input range: -10 to +10 V Output range: +1 to +5 V
SCM7B41-03A	Input range: -10 to +10 V Output range: 0 to +5 V
SCM7B41-03D	Input range: -10 to +10 V Output range: 0 to +10 V
SCM7B41-04	Input range: 0 to +5 V Output range: +1 to +5 V
SCM7B41-04A	Input range: 0 to +5 V Output range: 0 to +5 V
SCM7B41-04D	Input range: 0 to +5 V Output range: 0 to +10 V
SCM7B41-05	Input range: 0 to +20 V Output range: +1 to +5 V
SCM7B41-05A	Input range: 0 to +20 V Output range: 0 to +5 V
SCM7B41-05D	Input range: 0 to +20 V Output range: 0 to +10 V
SCM7B41-06	Input range: 0 to +40 V Output range: +1 to +5 V
SCM7B41-06A	Input range: 0 to +40 V Output range: 0 to +5 V
SCM7B41-06D	Input range: 0 to +40 V Output range: 0 to +10 V
