SCM7B Series - Isolated Process Control Signal Conditioning Products

Main features

±0.03% Accuracy (Typical)
±0.01% Linearity
1500Vrms Transformer Isolation & 240Vrms Field-side Protection
ANSI/IEEE C37.90.1 Transient Protection
Wide Supply Voltage, 14 to 35VDC
5-Pole Low-Pass Filtering
Low Peak and RMS Noise
Low Drift Input Circuitry for Long-Term Stability
Up to 160dB CMRR
85dB NMR at 60Hz, 80dB at 50Hz
-40°C to +85°C Operating Temperature
Backpanels Allow Use of Industry Standard Digital I/O, Solid State Relay Modules
DIN Rail Mounting
CSA C/US Certified (Class I, Division 2, Groups A, B, C, D)
CE and ATEX Compliant
Manufactured per RoHS Directive 2011/65/EU

Option

Clear

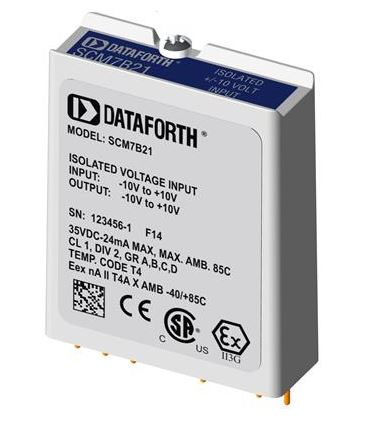

Each Dataforth 7B module provides a single channel of isolated analog input or output.

Input modules accept analog voltage or current signals from all types of field sensors and sources; they filter, isolate, amplify, linearize, and convert the input signals to high-level analog outputs for use in process control systems
Output modules accept high-level analog voltage signals from a process control system, then buffer, isolate, filter, and amplify them before providing current or voltage output to field devices

All 7B modules are CSA C/US certified and CE and ATEX compliant.

Accessories include a complete selection of backpanels, DIN rail mounting options, interface cables, mounting racks, power supplies, and other accessory items.

	SCM7B21/30/31 - Isolated Analog Voltage Input Modules SCM7B
	SCM7B22 - Isolated Bipolar Voltage Output Modules SCM7B
	SCM7B32/33 - Isolated Process Current/Voltage Input Modules SCM7B
	SCM7B34/34N - Isolated Linearized 2- Or 3-Wire RTD Input Modules SCM7B
	SCM7B35 - Isolated 2-Wire Transmitter Interface Modules With Loop Power SCM7B
	SCM7B36 - Isolated Potentiometer Input Module SCM7B
	SCM7B37 - Non-Linearized Isolated Thermocouple Input Module SCM7B
	SCM7B39 - Isolated Process Current Output Modul SCM7B
	SCM7B40/41 - Isolated Analog Voltage Input Modules, Wide Bandwidth SCM7B
	SCM7B47 - Isolated Linearized Thermocouple Input Module SCM7B

SCM7B Series	Isolated Process Control Signal Conditioning Products
SCM7B21/30/31 Serie	Isolated Analog Voltage Input Modules
SCM7B22 Serie	Isolated Bipolar Voltage Output Modules
SCM7B32/33 Serie	Isolated Process Current/Voltage Input Modules
SCM7B34/34N Serie	Isolated Linearized 2- Or 3-Wire RTD Input Modules
SCM7B35 Serie	Isolated 2-Wire Transmitter Interface Modules With Loop Power
SCM7B36 Serie	Isolated Potentiometer Input Module
SCM7B37 Serie	Non-Linearized Isolated Thermocouple Input Module
SCM7B39 Serie	Isolated Process Current Output Modul
SCM7B40/41 Serie	Isolated Analog Voltage Input Modules, Wide Bandwidth
SCM7B47 Serie	Isolated Linearized Thermocouple Input Module
