SCM5B Series - Isolated Analog Signal Conditioning Products

Main features

±0.03% Accuracy (Typical)
±0.005% Linearity
1500Vrms Transformer Isolation & 240Vrms Field-side Protection
ANSI/IEEE C37.90.1 Transient Protection
5V Power (30mA Typical)
4- to 6-Pole Low-Pass Filtering
Up to 160dB CMR
95dB NMR at 60Hz, 90dB at 50Hz
±1µV°C Drift
Output Noise as Low as 150µVrms
-40°C to +85°C Operating Temperature
CSA C/US Certified (Class I, Division 2, Groups A, B, C, D)
CE and ATEX Compliant
Manufactured per RoHS Directive 2011/65/EU

Option

Clear

Each Dataforth 5B module provides a single channel of isolated analog input or output.

Input modules interface to all types of external sensors, then filter, isolate, amplify, and convert the input signals to high-level analog voltage outputs
Output modules accept high-level analog voltage signals from a host system, then buffer, isolate, and amplify them before providing process current or voltage output to field devices

More than 250 different 5B modules are available encompassing a wide selection of isolated analog input and output functions. Analog inputs include voltage and current in narrow and wide bandwidths, thermocouple, RTD, accelerometer, potentiometer, strain gage, frequency, and 2-wire transmitter.

All 5B modules are CSA C/US certified and CE and ATEX compliant.

Accessories include a complete selection of backpanels, DIN rail mounting options, interface cables, mounting racks, power supplies, and other accessory items.

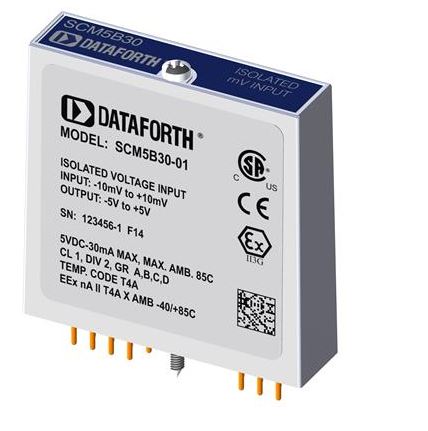

	SCM5B30 - Voltage Input Signal Conditioning Module, 4Hz Bandwidth. SCM5B
	SCM5B31 - Voltage Input Signal Conditioning Module, 4Hz Bandwidth SCM5B
	SCM5B32 - Current Input Signal Conditioning Module, 4Hz Bandwidth SCM5B
	SCM5B33 - True RMS Signal Conditioning Module SCM5B
	SCM5B34 - Linearised 2- or 3-Wire RTD Signal Conditioning Module, 4Hz Bandwidth SCM5B
	SCM5B35 - Linearised 4-Wire RTD Signal Conditioning Module, 4Hz Bandwidth SCM5B
	SCM5B36 - Potentiometer Signal Conditioning Module, 4Hz Bandwidth SCM5B
	SCM5B37 - Non-Linearised Thermocouple Signal Conditioning Module, 4Hz Bandwidth SCM5B
	SCM5B38 - Strain Gauge Signal Conditioning Module, 4Hz or 10kHz Bandwidth SCM5B
	SCM5B39 - Current Output Signal Conditioning Module, 400Hz Bandwidth SCM5B
	SCM5B392 - Matched-Pair Servo/Motor Controller Signal Conditioning Modules, 1kHz Bandwidth SCM5B
	SCM5B40 - Voltage Input Module, 10kHz Bandwidth SCM5B
	SCM5B41 - Voltage Input Module, 10kHz Bandwidth SCM5B
	SCM5B42 - 2-Wire Transmitter Interface, 100Hz Bandwidth SCM5B
	SCM5B43 - General Purpose Voltage Module with DC Excitation, 1kHz Bandwidth SCM5B
	SCM5B45 - Frequency Input Module SCM5B
	SCM5B47 - Linearized Thermocouple Signal Conditioning Module, 4Hz Bandwidth SCM5B
	SCM5B48 - Accelerometer Signal Conditioning Module SCM5B
	SCM5B49 - Voltage Output Signal Conditioning Module, 400Hz Bandwidth SCM5B

SCM5B Series	Isolated Analog Signal Conditioning Products
SCM5B30 Serie	Voltage Input Signal Conditioning Module, 4Hz Bandwidth.
SCM5B31 Serie	Voltage Input Signal Conditioning Module, 4Hz Bandwidth
SCM5B32 Serie	Current Input Signal Conditioning Module, 4Hz Bandwidth
SCM5B33 Serie	True RMS Signal Conditioning Module
SCM5B34 Serie	Linearised 2- or 3-Wire RTD Signal Conditioning Module, 4Hz Bandwidth
SCM5B35 Serie	Linearised 4-Wire RTD Signal Conditioning Module, 4Hz Bandwidth
SCM5B36 Serie	Potentiometer Signal Conditioning Module, 4Hz Bandwidth
SCM5B37 Serie	Non-Linearised Thermocouple Signal Conditioning Module, 4Hz Bandwidth
SCM5B38 Serie	Strain Gauge Signal Conditioning Module, 4Hz or 10kHz Bandwidth
SCM5B39 Serie	Current Output Signal Conditioning Module, 400Hz Bandwidth
SCM5B392 Serie	Matched-Pair Servo/Motor Controller Signal Conditioning Modules, 1kHz Bandwidth
SCM5B40 Serie	Voltage Input Module, 10kHz Bandwidth
SCM5B41 Serie	Voltage Input Module, 10kHz Bandwidth
SCM5B42 Serie	2-Wire Transmitter Interface, 100Hz Bandwidth
SCM5B43 Serie	General Purpose Voltage Module with DC Excitation, 1kHz Bandwidth
SCM5B45 Serie	Frequency Input Module
SCM5B47 Serie	Linearized Thermocouple Signal Conditioning Module, 4Hz Bandwidth
SCM5B48 Serie	Accelerometer Signal Conditioning Module
SCM5B49 Serie	Voltage Output Signal Conditioning Module, 400Hz Bandwidth

Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
SCM5B32: Analog Current Input Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
SCM5B33 : Isolated True RMS Input Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b34 : inearized 2- or 3-Wire RTD Input Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b35 : Linearized 4-Wire RTD Input Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b36: Potentiometer Input Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b37 : Non-Linearized Thermocouple Input Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b38n: Strain Gage Input Modules, Narrow Bandwidth
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b38w: Strain Gage Input Modules, Wide Bandwidth
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b39: Current Output Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b392: Matched-Pair Servo/Motor Controller Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b40_41: Analog Voltage Input Modules, Wide Bandwidth
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b42:2-Wire Transmitter Interface Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b43: General Purpose Input Modules, with DC Excitation
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b45: Frequency Input Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b47: Linearized Thermocouple Input Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b48: Accelerometer Input Module
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5b49: Voltage Output Modules
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.
scm5baccs: Accessories, backpanels, and module dimensions
Receive the document immediately by E-mail

Name

E-mail *

The information collected via this form is registered by our company to allow us to respond to your request, to follow the exchanges between you and our company, to respond to your specific request for documentation download. We can therefore be led to contact you by mail or phone to ensure the adequacy of our service with your request or to complete it. Your data are kept for 3 years and are intended for our customer service. In accordance with the law "IT and freedoms", you can exercise your right of access to your data and have them rectified by contacting us as stipulated in our page presenting our privacy policy.

	SCM5BPT - Pass Thru Module The SCM5BPT is a pass-through module used to establish a direct connection between an input signal and the SCM5B series backplane analog bus. It has unity gain and ...
	SCMPB01 - 16-channel backpanel with standoffs for mounting. The SCMPB01 16-channel backpanel can accept any of the SCM5B analog modules in any mixture. It can be mounted on the SCMXRK-002 19-inch metal rack. The SCMPB01 has ...
	SCMPB02 - 16-channel backpanel with standoffs for mounting. The SCMPB02 16-channel backpanel can accept any of the SCM5B analog modules in any mixture. It can be mounted on the SCMXRK-002 19-inch metal rack. The SCMPB02 has ...
	SCMPB03 - Single channel backpanel. No mounting hardware included. The SCMPB03 is single channel mounting panels for the SCM5B modules, for DIN rail mounting.
	SCMPB04 - Dual channel backpanel. No mounting hardware included. The SCMPB04 is dual channel mounting panels for the SCM5B modules
	SCMPB05 - 8-channel backpanel with standoffs for mounting. The SCMPB05 backpanel can accept up to eight SCM5B analog input and/or output modules in any combination. It can be mounted on the SCMXRK-002 19-inch metal rack. A ...
	SCMPB06 - 8-channel backpanel with standoffs for mounting, multiplexed The SCMPB06 backpanel can accept up to eight SCM5B modules in any combination. It can be mounted on the SCMXRK-002 19-inch metal rack. The SCMPB06 has two analog ...
	SCMPB07 - 8-channel backpanel, No mounting hardware included The SCMPB07 8-channel high-density backpanel can accept any of the SCM5B analog modules in any mixture. Its overall width is 5.5 inches (139.7mm) versus 10 inches (254mm) for ...
	SCMXCA004 - Interface cables System interface cable for the SCMPB01/02/05/06 backpanels. This is a 26 conductor ribbon cable with a mass terminated socket connector installed on each end. It can be ordered ...
	SCMXCJC - Encapsulated Cold Junction Compensation The SCMXCJC is the identical circuit used on the SCMPB01/02/03/04/05/06/07 backpanels except it is packaged as a component for use in customer designed mounting boards. When interfaced to ...
	SCMXEV - Analog Module Evaluation Board The SCMXEV is a single channel board with a test socket for SCM5B module evaluation. All signal input/output, control, and power connections are connected to terminal blocks for ...
	SCMXIF - Universal Interface Board The SCMXIF is a universal interface board which converts a 26-pin ribbon cable input to 26 screw terminals for discrete wire. It can be mounted on the back ...
	SCMXJP-003 - Jumper strap Package of 10 jumpers for connecting adjacent input/output modules on the SCMPB01 backpanel. This connection is made if it is desired to direct the output of any input ...
	SCMXR1 - Current Conversion Resistor A precision 20Ω, 0.1%, 10ppm/°C resistor used with the SCM5B32 current input module or SCM5B42 two-wire transmitter interface module. Sockets are provided on the SCMPB01/02/03/04/05/06/07 and SCMXEV backpanels ...
	SCMXRK-002 - 19 "metal rack for mounting The SCMXRK-002 is a 19"metal rack for mounting 8BP04/08/16 rear panels and 8BXIF interface board, SCMPB01/02/05/06 et SCM7BP04/08/16
