RazorMax PXI Express - 16-Bit 1GS/s High Speed Digitizers PXI Express

Main features

  • 4 or 2 Digitizing Input Channels
  • 1 GS/s or 500 MS/s Maximum Sampling Rate per Channel
  • 700 MHz Bandwidth @ 1 GS/s or 350 MHz Bandwidth @ 500 MS/s
  • 16-Bit Vertical A/D Resolution
  • 4 GS (8 GB) Onboard Sample Memory Standard
  • FPGA Based Applications for Real-Time DSP Functions
  • Dual Port Memory with Sustained PCIe Data Streaming at 4+ GB/s
  • Full-Featured Front-End with DC or AC Coupling and 50 Ω Inputs
  • Software Control of Input Voltage Ranges
  • Ease of Integration with External or Reference Clock In & Clock Out
  • External Trigger In & Trigger Out
  •  PXI Express (PXIe) 3U, 1 slot Generation 3.0 x8 Card
  • Programming-Free Operation with GaGeScope PC Oscilloscope Software
  • Software Development Kits Available for C/C#, LabVIEW and MATLAB
  • Windows 10/8/7 and Linux Operating Systems Supported
Price request Datasheet Ask a question

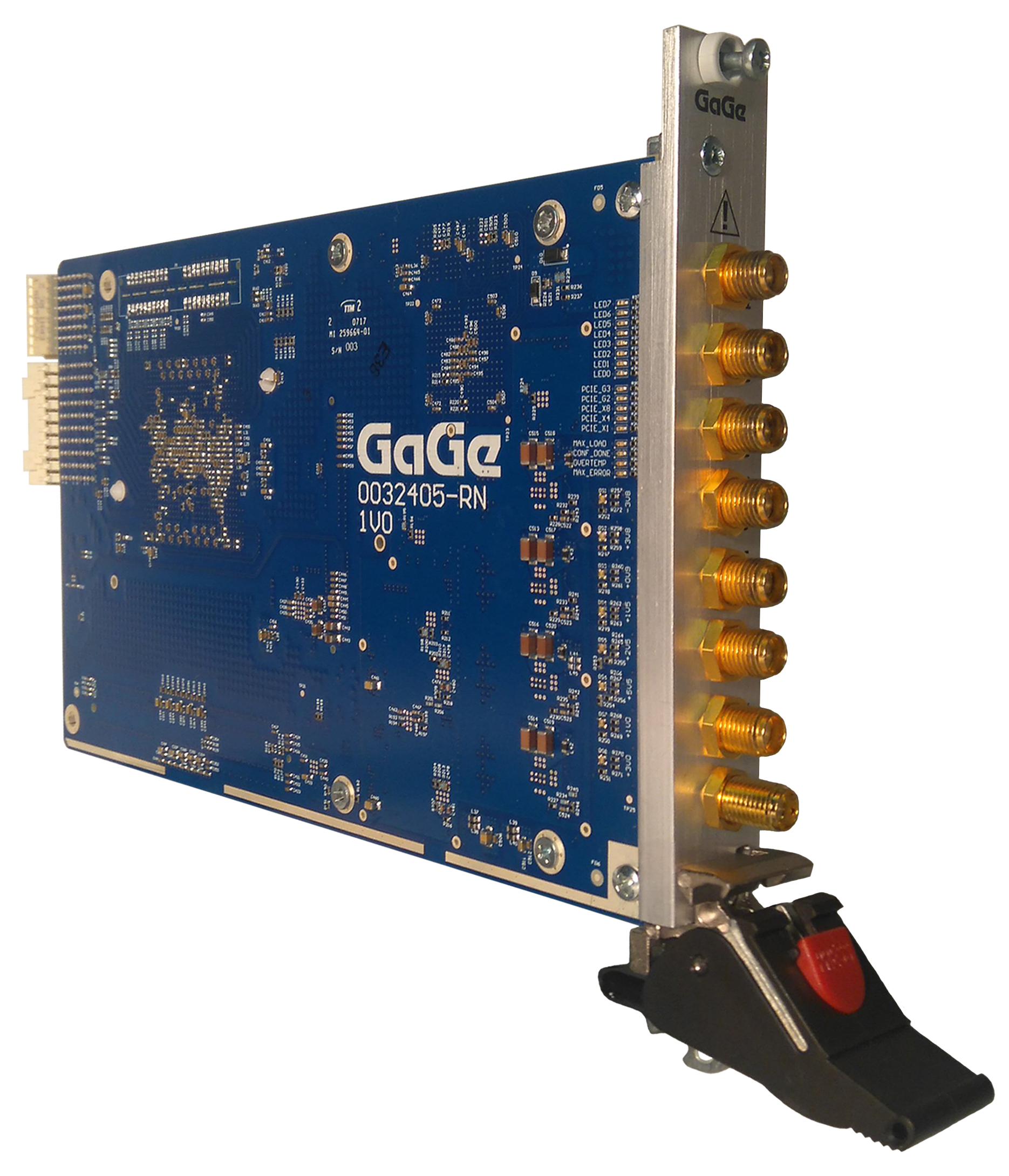

The GaGe RazorMax PXI Express multi-channel digitizers features up to 4 channels in a single-slot PXI Express Gen3 card with up to 1 GS/s sampling per channel, 700MHz bandwidth and up to 8 GB of on-board acquisition memory.

RMX-X65-020 - CXE16502 - PXIe 500 MS/s per CH, 16-bit, 350 MHz BW, 4 GS (8 GB) Onboard Memory

RazorMax PXIe
RMX-X61-G20 - CXE161G2 - PXIe 1 GS/s per CH, 16-bit, 700 MHz BW, 4 GS (8 GB) Onboard Memory

RazorMax PXIe
RMX-X65-040 - CXE16504 - PXIe 500 MS/s per CH, 16-bit, 350 MHz BW, 4 GS (8 GB) Onboard Memory

RazorMax PXIe
RMX-X61-G40 - CXE161G4 - PXIe 1 GS/s per CH, 16-bit, 700 MHz BW, 4 GS (8 GB) Onboard Memory

RazorMax PXIe
RMX-FAC-001. - AC-Coupled Front End Configuration (Hardware configured at factory.)

RazorMax PXIe
RazorMAX PXIe 16-Bit 1GS/s High Speed Digitizers PXI Express
RMX-X65-020 CXE16502 - PXIe 500 MS/s per CH, 16-bit, 350 MHz BW, 4 GS (8 GB) Onboard Memory
RMX-X61-G20 CXE161G2 - PXIe 1 GS/s per CH, 16-bit, 700 MHz BW, 4 GS (8 GB) Onboard Memory
RMX-X65-040 CXE16504 - PXIe 500 MS/s per CH, 16-bit, 350 MHz BW, 4 GS (8 GB) Onboard Memory
RMX-X61-G40 CXE161G4 - PXIe 1 GS/s per CH, 16-bit, 700 MHz BW, 4 GS (8 GB) Onboard Memory
RMX-FAC-001. AC-Coupled Front End Configuration (Hardware configured at factory.)
