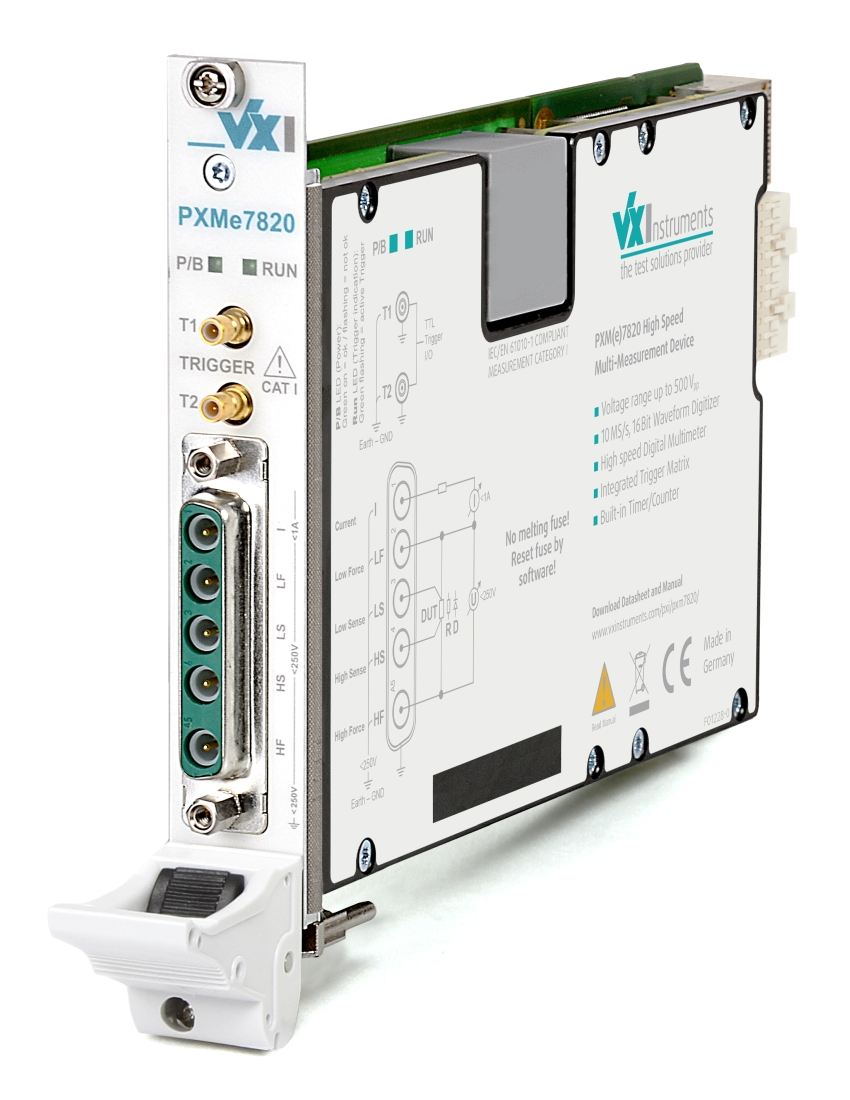

PXM(e)7820 - PXI(e) High Speed Multi-Measurement-Device

Main features

  • High voltage range with up to 500 V pp
  • 16 Bit Waveform Digitzer with up to 64 MS, 40 MS/s
  • High Precision Digital Multimeter with up to 24 Bit resolution and 1 MS/s
  • Fully isolated design
  • Up to 1 GOhm input impedance
  • LCR meter (inductance, capacitance and 2- and 4-wire resistance measurement)
  • 6 -wire technic with guarding functionality
  • Highly configurable trigger matrix
  • Trigger engine for instrument synchronization
  • Built-in timer/counter engine
  • Electronic protection against overcurrent and overvoltage
  • Memory segmenting
Price request Datasheet Ask a question

The PXM(e)7820 Highspeed Multi-Measurement-Device family unifies the functions of a Digitizer (up to 250V, 40MS/s), a High Precision Digital Multimeter (up to 250V, incl. RLC), a Timer/Counter and a highly configurable Trigger Matrix into one device and is thereby versatilely applicable. The family is ideally suited for production because of its fast switchover of operating modes (<1msec) and its fast range changes (<10msec).

In addition to the 4-wire technic with sense connections, the PXM(e)7820 provides a 6-wire technic with guarding functionality. A trigger-input and –output is provided in every device as well as electronic protection against overvoltage and overcurrent

PXM(e)7820 PXI(e) High Speed Multi-Measurement-Device
