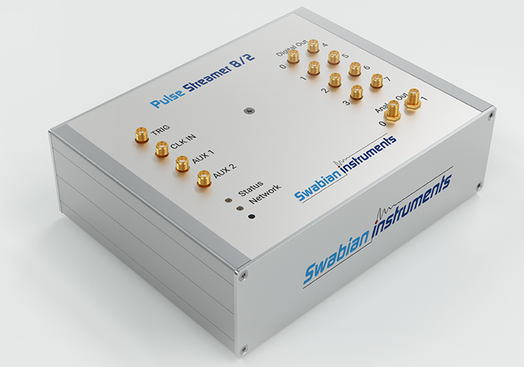

Pulse Streamer 8/2 - 8 Channels digital pattern and 2 arbitrary waveform generators

Main features

  • Digital Outputs
    • 8x SMA output channels
    • 1 GSa/s sampling rate
    • Voltage levels (into 50 Ω) : 0 and 2.6 V
    • Rise and fall time (20%-80%) :  < 300 ps
    • Minimum pulse width :  2 ns
    • RMS jitter : < 50 ps
  • Analog Outputs
    • 2x SMA output channels
    • 125 MSa/s sampling rate
    • Voltage range : -1.0 to 1.0 V
    • Bandwidth (-3 db) : 50 MHz
    • Resolution : 14 bit



Price request Datasheet Ask a question

The Pulse Streamer 8/2 is a synchronous digital pattern and arbitrary waveform generator with 8 digital and 2 analog output channels. It comes with a powerful user interface that allows you to define complex pulse sequences and arbitrary waveforms efficiently.

Pulse Streamer 8/2 is the ultimate tool to solve your experiment control challenges. Its intuitive encoding lets you generate accurately timed high-resolution digital patterns and analog waveforms within minutes.

It is the preferred choice for demanding scientific applications across disciplines ranging from pulsed EPR and NMR, solid state defects and quantum dots to ultracold atoms and ions research.

Pulse Streamer 8 Channels digital pattern and 2 arbitrary waveform generators
