PS12000 - Phase Shifter 12GHz

Main features

  • Frequency Range: 8000 – 12000 MHz
  • Angle Range: 0 – 355 degrees
  • Power Input Range: < +26dBm
  • Phase Resolution: 5.625 degrees
  • Insertion Loss: 7-8dB
  • Return Loss: > 10dB
  • Bi-directional design
Price request Datasheet Ask a question

The PS12000 wideband RF Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 355 degrees in 5.6-degree increments.

This ultra-compact USB device features a graphic display and audio feedback. Simple to use and integrate into automated test environments, the PS12000 is extremely attractive for many radar and X-band applications.

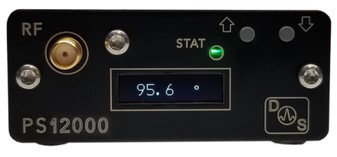

PS12000 Phase Shifter 12GHz
