PDC3301e - Pulse distribution chassis

Main features

Single Input or Intelligent Autoswitching Between Dual Inputs
Distribution of 1 PPS to 25 MPPS Pulse-Rate Signals
Very High Isolation Between Outputs
500 ps Differential Delay Between Outputs
Broadband 50 ohm impedance match to 500 MHz
RS-232 Port for Control and Monitoring
Dual-Redundant AC or DC Power Supply Option
Ethernet Port for Remote Control and Monitoring

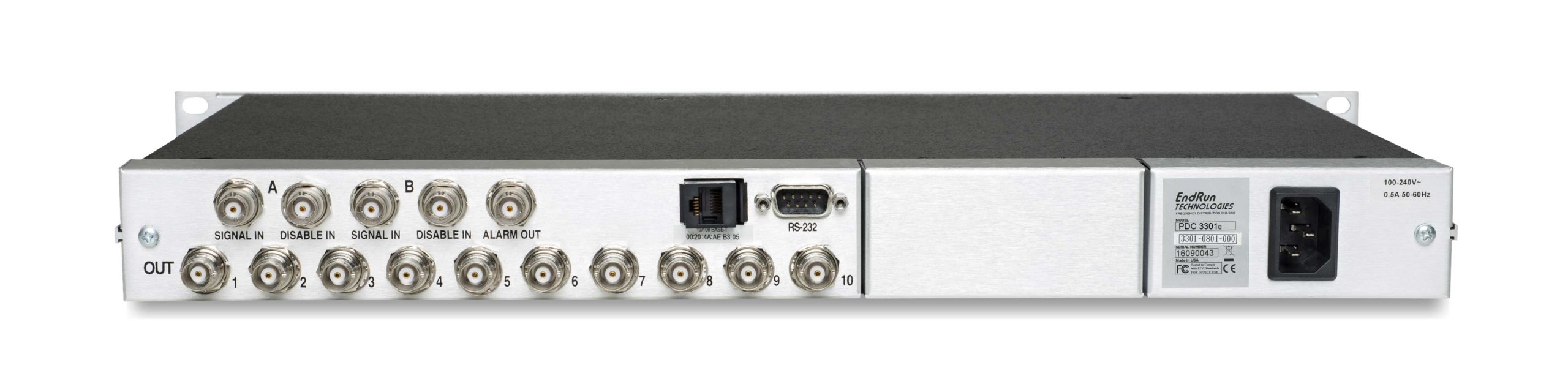

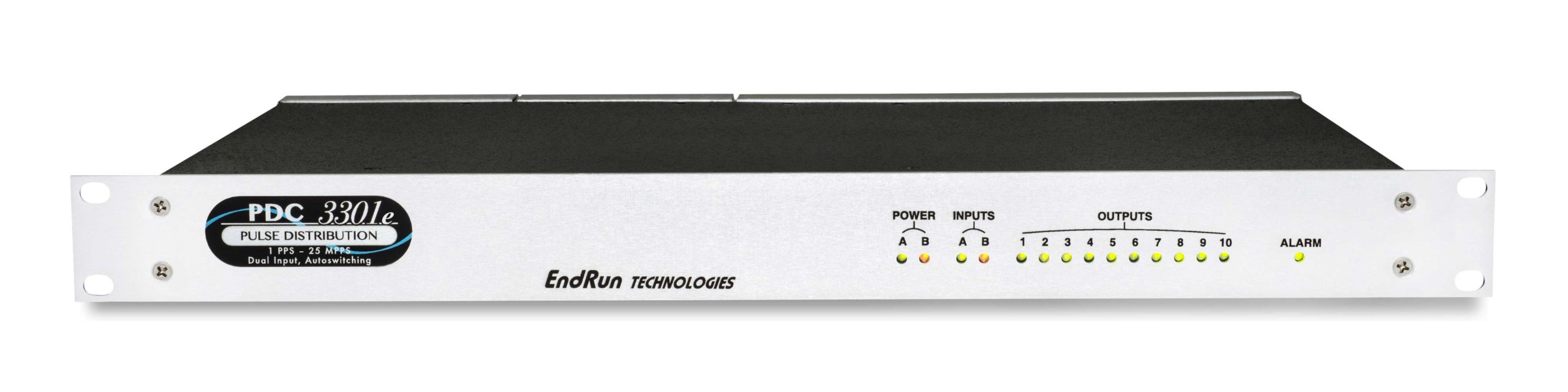

EndRun Technologies PDC3301e Distribution Chassis is a dual-input, ten-channel, pulse distribution amplifier in a 1U rackmount chassis. The PDC3301e provides ten isolated copies of an input signal. Fault sensing of signal levels is provided on all inputs and outputs, and fault status is easily visible via front-panel LED indicators.

The PDC3301e performs intelligent fail-over switching via continuous monitoring of the input pulse rates. It can switch inputs without missing a pulse for rates less than or equal to 1 MPPS and pulse widths greater than or equal to 500 nanoseconds.

3301-0801-000

Pulse distribution chassis

USM3301-0800-000
