The PD is a TTL pulse distribution amplifier. The outputs are designed to drive low impedance loads and long 50 or 75 Ω cables. This unit provides small propagation delay and low temperature coefficient, both are essential characteristics for the distribution of high quality timing signals.

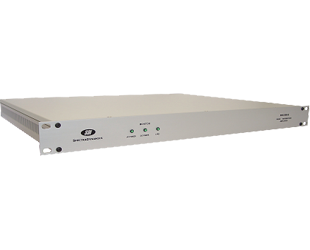

PD-15RMi - Pulse distribution amplifier
Main features
- 1 or 3 inputs, up to 15 outputs
- 10 ns propagation delay
- 50 ohm output: 2 Vp-p
- Low temperature coefficient: 3 ps/ºC
- Matched channel delays
| PD-15RMi-A - 1 Input and 5 Outputs Option A |
|
| PD-15RMi-C - 3 Inputs and 15 Outputs Option C |
|
| PD-15RMi-C1 - 1 Input and 10 Outputs Option C1 |
|
| PD-15RMi-C2 - 2 Inputs and 10 Outputs Option C2 |
|
| PD-15RMi-C3 - 1 Input and 15 Outputs Option C3 |
| PD-15RMi | Pulse distribution amplifier |
| PD-15RMi-A | 1 Input and 5 Outputs |
| PD-15RMi-C | 3 Inputs and 15 Outputs |
| PD-15RMi-C1 | 1 Input and 10 Outputs |
| PD-15RMi-C2 | 2 Inputs and 10 Outputs |
| PD-15RMi-C3 | 1 Input and 15 Outputs |
