PCIe-SIO4BXR - High-performance Multi-Protocol Serial I/O PCIe Board

Main features

  • Four Independent Multi-Protocol Serial Channels
  • Serial Mode Protocols include Asynchronous, Monosync, Bisync, SDLC, HDLC, Nine-Bit, and IEEE 802.3
  • Synchronous Serial Data Rates up to 10Mbps
  • Asynchronous Serial Data Rates up to 1Mbps
  • Independent Transmit and Receive FIFOs for each channel -Up to 32Kbyte each
  • Multi protocol Transceivers support RS422 (V.11)/RS485, RS423 (V.10), RS232 (V.28), V.35,  and RS530
  • Parity and CRC detection capability
  • Programmable Oscillators provide flexibility for Baud Rate Clock generation
  • PMC Rear IO Connection
  • SCSI type 68 pin front edge I/O Connector
  • Eight signals per channel, configurable as DTE or DCE:
    3 Serial Clocks (TxC, RxC, AuxC) , 2 Serial Data signals (TxD, RxD), CTS, RTS, DCD
  • Unused signals may be reconfigured as General Purpose IO
  • Fast RS422/RS485 Differential Cable Transceivers Provide Data Rates up to 10Mbps
  • RS423 and RS232 Cable Transceivers Provide Data Rates up to 230kbps
  • Industry Standard Zilog Z16C30 Multi-Protocol Universal Serial Controllers (USC®)
  • Standard Cable to four DB25 connectors and Custom Cables available
Price request Datasheet Ask a question

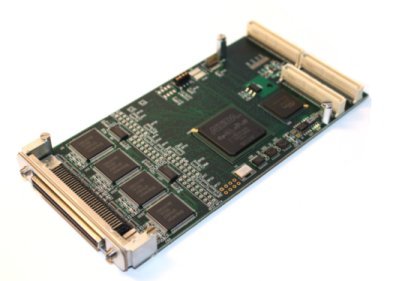

The PCIe-SIO4BXR board is a four channel serial interface card which provides high speed, full-duplex, multi-protocol serial capability for PCIe applications. The SIO4BXR combines two multi-protocol Dual Universal Serial Controllers (USC®), 8 external FIFOs, and multi-protocol transceivers to provide four fully independent asynchronous or synchronous serial channels.

Multi protocol Transceivers support RS422 (V.11)/RS485, RS423 (V.10), RS232 (V.28), V.35, RS530, as well as other Mixed Protocol modes. These features, along with a high performance PCIe interface engine, give the SIO4BXR unsurpassed performance in a serial interface card.

PCIE-SIO4BXR High-performance Multi-Protocol Serial I/O PCIe Board
