PC104P-16HSDI - 6-Channel, 16-Bit Sigma-Delta Analog Input PC104+ Board

Main features

  • Sigma-Delta Conversion; No External Antialiasing Filters Required
  • High Effective Sampling Rate
  • Integral Antialiasing Input Filters Reject Out-of-Band Interference Components
  • Completely Software Configurable; No Field Configuration Jumpers
  • Six 16-Bit Analog Input Channels; Dedicated Sigma-Delta Converter per Channel
  • Sample Rates Selectable from 30K to 1100K Samples per Second per Channel
  • Two Independent Sample-Rate Generators; Adjustable with 0.2 Percent Resolution
  • 256K-Sample High-Rate FIFO Buffer. All Data is Channel-Tagged
  • 2-Channel DMA engine; Block and Demand-Mode Transfers
  • Harmonic Sampling Supported, with Clocking Ratios Between Channels from 1 to 32
  • Auto calibration Uses Hardware Correction; No missing Codes Introduced
  • Input Ranges Selectable as ±1.25V, ±2.5V, ±5V or ±10V
  • Optional 4-Channel version available ·Universal 3.3V, 5V Signaling

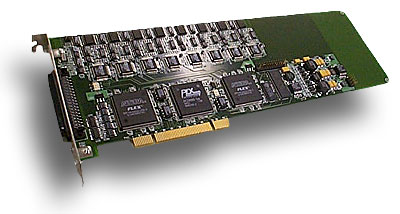

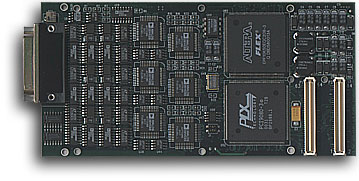

  • Exist in PCIe, PCI, cPCI/PXI, PC104 and PMC
Price request Datasheet Ask a question

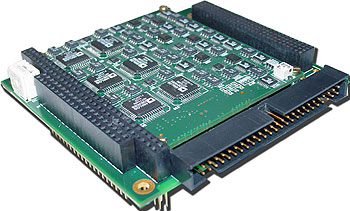

The PC104P-16HSDI analog input board provides four or six precision 16-bit Sigma-Delta analog inputs, and requires no external antialiasing filters. Optimized for flexibility and performance, the board is ideal for a wide variety of applications, ranging from simple precision voltage measurements, to the analysis of complex audio signals and waveforms.

A FIFO buffer holds up to 64K channel-tagged input samples. Each of the sigma-delta analog input channels can be controlled by either of two independent sample clocks, and multiple channels can be harmonically locked together. Sample rates are adjustable from 30 KSPS to 1.1M SPS, for a maximum aggregate rate of 4.4 MSPS. The input range is software selectable as ±1.25V, ±2.5V, ±5V or ±10V.

PC104P-16HSDI 6-Channel, 16-Bit Sigma-Delta Analog Input PC104+ Board
