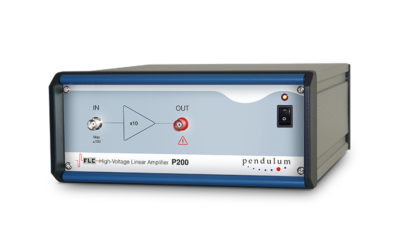

P200 - High voltage amplifier 100Vpp, 1Amps

Main features

  • Bandwidth from DC to 50 KHz fill scale, 200 KHz small signal
  • Amplification X10 times, fixed
  • Load type Resistive || capacitive
  • Input Impedance of 1 Mohm || 10 pF
  • Output Impedance  1 ohm in the linear mode
  • Input Voltage of ±10 V Nominal
  • Output Voltage of  ±100V Max
  • Output Current  of 1A continuous
  • Output Slew Rate  of 30 V/µs
Price request Datasheet Ask a question

The P200 is a general purpose linear amplifier having a fixed amplification of 10 times and capable of bipolar high voltage output of ±100V.
Any function generator or arbitrary waveform generator or any other signal source with amplitude up to ±10 V can be used as an input device.

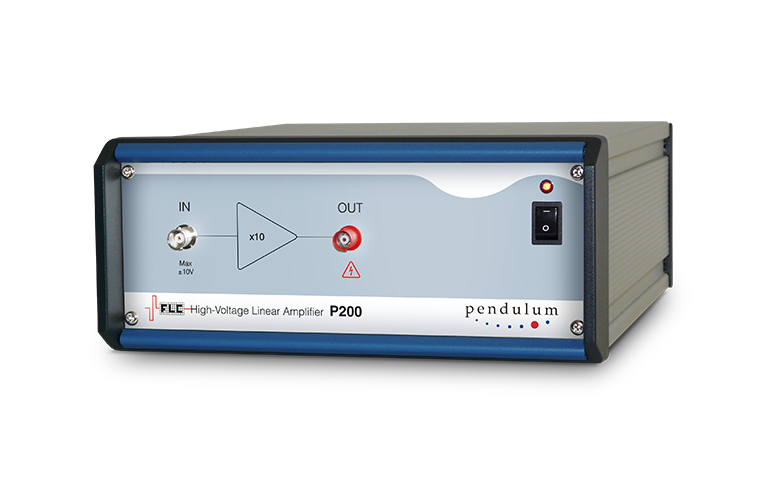

P200 High voltage amplifier 100Vpp, 1Amps

  • Single_Channel_High_Voltage_Linear_Amplifiers_v6_10-03-20
