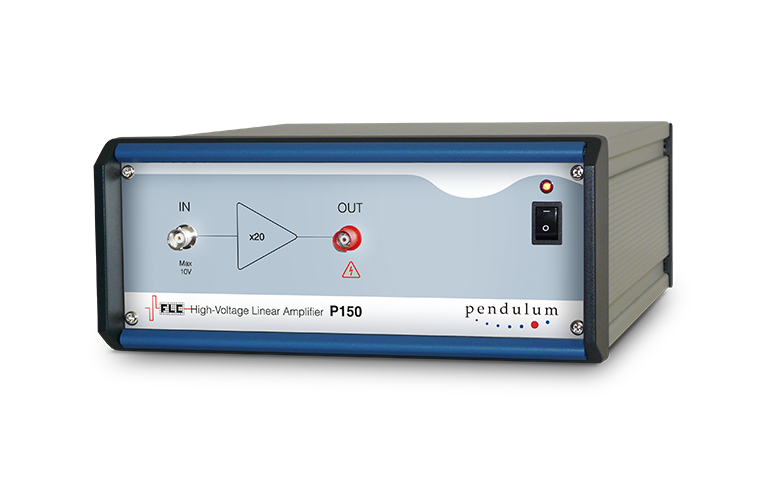

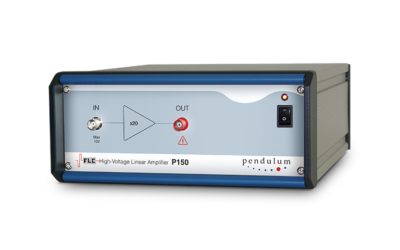

The P150 is a general purpose linear amplifier having a fixed amplification of 20 times and capable of bipolar high voltage output of +150V.
Any function generator or arbitrary waveform generator or any other signal source with amplitude up to +10 V can be used as an input device.
P150 - Unipolar high voltage amplifier +150V, 1Amps
Main features
- Bandwidth from DC to 50 KHz fill scale, 200 KHz small signal
- Amplification X20 times (or 15 times) , fixed
- Load type Resistive || capacitive
- Input Impedance of 1 Mohm || 10 pF
- Output Impedance 1 ohm in the linear mode
- Input Voltage of +10 V Nominal
- Output Voltage of +150V Max
- Output Current of 1A continuous
- Output Slew Rate of 20 V/µs
