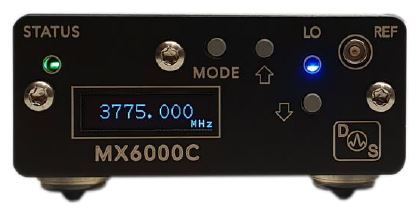

MX6000C - RF Mixer, Programmable UP/Downconverter 6GHz

Main features

Local Oscillator: 1000 – 6000 MHz
RF range: 1500 – 6000 MHz
IF range: 5 – 2000 MHz
LO-RF isolation band 1: 36 dB typical
LO-IF isolation band 1: 36 dB typical
LO-RF isolation band 2: 30 dB typical
LO-IF isolation band 2: 20 dB typical
RF P1dB : +1 dBm
LO phase noise at 6GHz < 73 dBc
LO Reference Frequency: ±2.5 ppm (10MHz)
Return loss: 10 dB typical
Low conversion loss: ( 6-8 dB Typ.)
Max input power: +10dBm
Modes: Up / Down Converting

The MX6000C is a compact wide-band general-purpose mixer with integrated harmonic-filtered programmable Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application.

Reference 10 MHz signal can be externally supplied or automatically generated internally. The MX6000C makes an extremely convenient up-converter, down-converter, or general purpose mixer by eliminating the need for a separate local oscillator or laboratory DC power supply.

MX6000C

RF Mixer, Programmable UP/Downconverter 6GHz
