MX20000 - RF Mixer 20 GHz

Main features

Integrated 13 – 24 GHz programmable local oscillator
IF range: 10 MHz to 6 GHz
RF range: 11 – 20 GHz
High RF input P1dB > +11 dBm
Low LO leakage:< -35 dB typical
LO phase noise at 18GHz (10KHz offset): <80 dBc
Low conversion loss (8-12dB typical)
Return loss: > 10 dB typical
10MHz reference port
LO Reference frequency: 100MHz & 10MHz
Reference Source: ±280 PPB (10MHz)

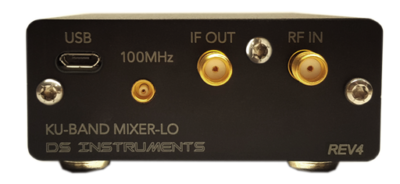

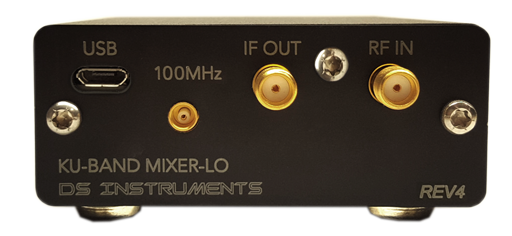

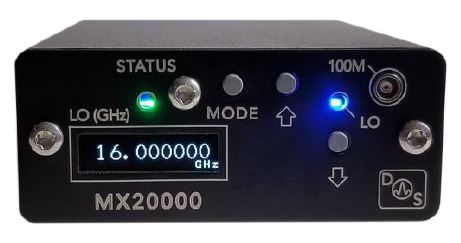

The MX20000 is a wideband high-performance mixer with integrated 13GHz – 24GHz Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application. Using its ultra-low noise internal reference source the LO signal has extremely low phase noise.

The MX20000 makes an extremely convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive high-frequency signal source.
