MC3132 - 32-channel multiplexer

Main features

  • 32-channel multiplexer
  • All 32 channels switch both HI and LO inputs
  • Support 4-wire measurement
  • The signal to be tested is connected through the M3TB32
    terminal block
  • Can be connected with MC3065
Price request Datasheet Ask a question

Rigol MC3132 32 Channel Differential Multiplexer. Rigol MC3132 is a 32-channel multiplexer which is divided into two banks of 10 two-wire channels (HI and LO) each and can be used for 2-wire and 4-wire connections. When making 4-wire resistance measurement, the instrument automatically pairs channel n with channel n+10. MC3120 is used with the external terminal block M3TB32 which has a built-in thermocouple reference junction.

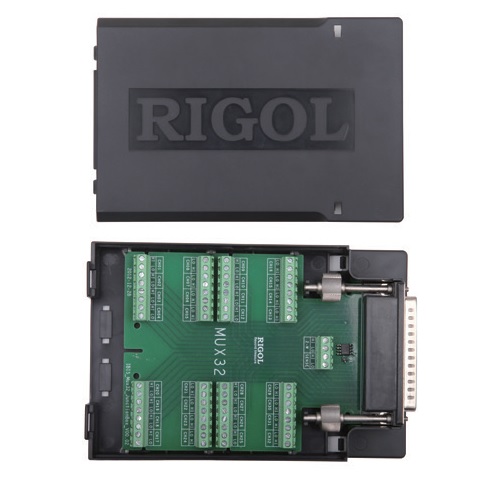

M3TB32 - 32-channel Mux Terminal box M3TB32 - 32-channel Mux Terminal box

Terminal

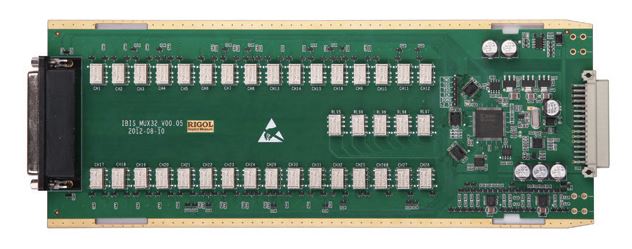

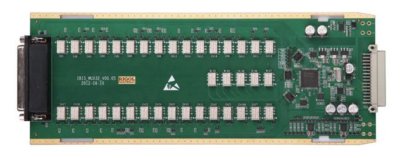

MC3132 32-channel multiplexer
M3TB32 32-channel Mux Terminal box
