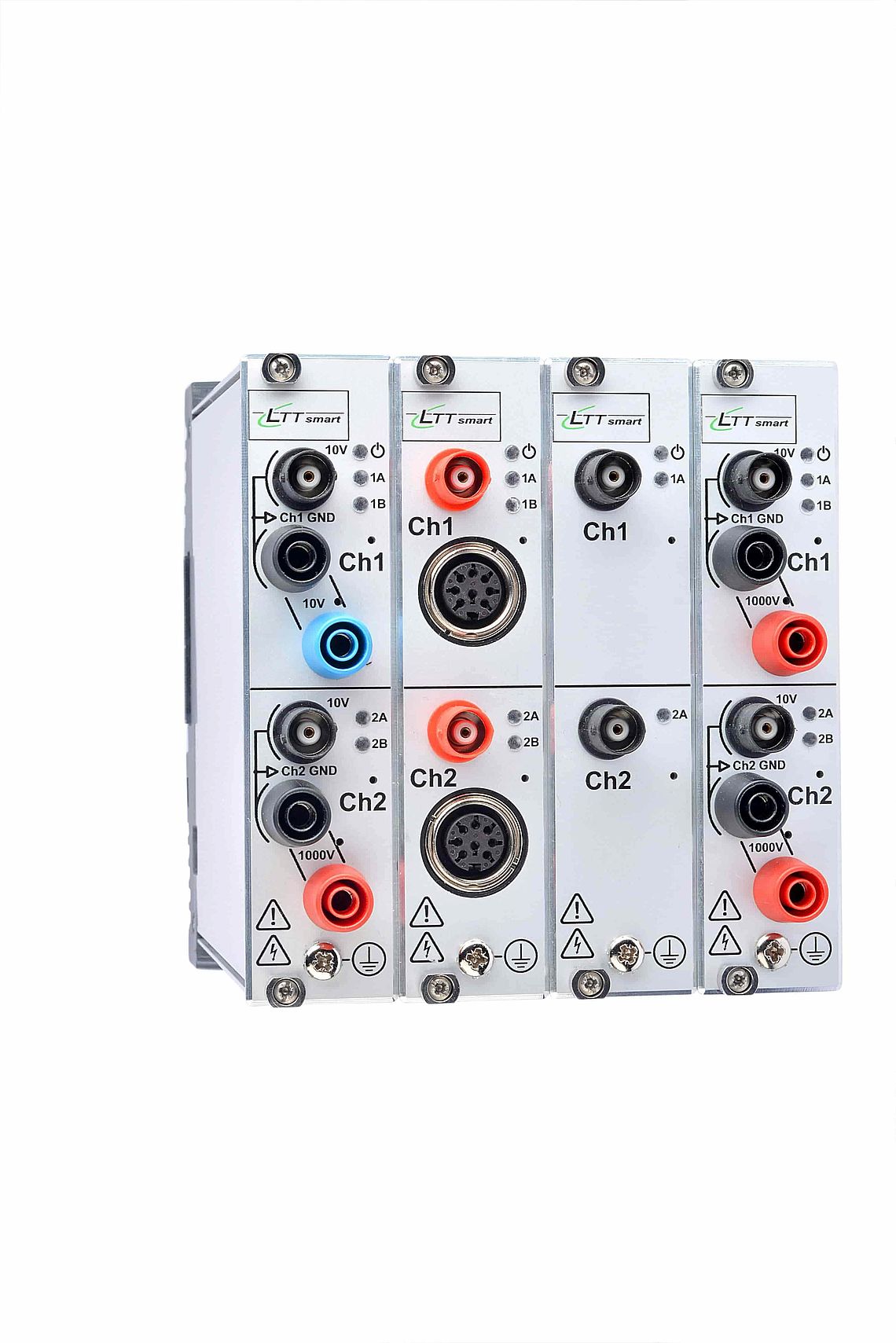

LTTsmart - Precision Data Acquisition System

Main features

Up to 2 MHz sampling rate per channel (optional 4 MHz per channel)
900 kHz bandwidth (optional 1,7 MHz)
Extremely high precision: 0.015%*signal + 0.015%*range
24 Bit A/D Converter – extremely low noise and distortion free
Highly synchronous up to 16 channels per device and multiple devices
2500 VDC galvanic isolation of all channels
Meets the requirements of DIN IEC 60034-2-3-3
Voltage and current inputs: up to ±1000 Vrms
Optional ICP®, charge, DMS and/or pulse
Voltage and current inputs: up to ±1000 Vrms
Compact and robust for operation near inverter

Options

Clear

The LTTsmart is a consistent further development of our precision measuring instruments. In a new housing, the measuring device is ideally designed for use in industrial environments. As power analyzer, its measurement accuracy makes it ideally for the development of electromobility.

The LTTsmart data acquisition system, measuring electrical properties, consists of one module with two channels each and can be flexibly extended by several modules in different versions. The flexible selection of the modules allows to design a solution tailored to the respective requirements.

For example, the LTTsmart is perfectly suited for use in power analysis of inverter signals on battery-powered electric motors, in OEM test bench construction or for power quality measurement.

	LTTsmart HH - LTTsmart HH - Power Analyzer Ch1: Volt: ±500 mV and ±10 V, High Volt: ±1000 Vrms Ch2: Volt: ±500 mV and ±10 V, High Volt: ±1000 Vrms
	LTTsmart LH - LTTsmart LH - Power Analyzer light Ch1: Volt: ±500 mV and ±10 V Ch2: Volt: ±500 mV and ±10 V, High Volt: ±1000 Vrms
	LTTsmart LL - LTTsmart LL - TransientRecorder Ch1: Volt: ±500 mV and ±10 V Ch2: Volt: ±500 mV and ±10 V
	LTTsmart LDI - LTTsmart LDI - SensorCorder Ch1: Volt: ±500 mV and ±10 V, Strain-Gauge (DMS), Charge, ICP®: AC and DC Ch2: Volt: ±500 mV and ±10 V, Strain-Gauge (DMS), Charge, ICP®: AC and DC
	LTTsmart LDIP - LTTsmart LDIP - SensorCorder Ch1: Volt: ±500 mV and ±10 V, Strain-Gauge (DMS), Charge, ICP®: AC and DC and pulse/counter AZ inputs (1.2ns resolution) Ch2: Volt: ±500 mV and ±10 V, Strain-Gauge (DMS), Charge, ICP®: AC and DC
	LTTsmart LI - LTTsmart LI - SensorCorder light Ch1: Volt: ±500 mV and ±10 V, Charge, ICP®: AC und DC Ch2: Volt: ±500 mV and ±10 V, Charge, ICP®: AC und DC
	LTTsmart MM - LTTsmart MM - TransientRecorder Ch1: Volt: ±500 mV, ±10 and ± 90 V Ch2: Volt: ±500 mV, ±10 and ± 90 V

LTTsmart	Precision Data Acquisition System
LTTsmart HH	LTTsmart HH - Power Analyzer
LTTsmart LH	LTTsmart LH - Power Analyzer light
LTTsmart LL	LTTsmart LL - TransientRecorder
LTTsmart LDI	LTTsmart LDI - SensorCorder
LTTsmart LDIP	LTTsmart LDIP - SensorCorder
LTTsmart LI	LTTsmart LI - SensorCorder light
LTTsmart MM	LTTsmart MM - TransientRecorder
