LNA1080014 (LNA = Low-Noise Amplifier) is a wideband amplifier with an extraordinary low noise figure. It is suitable for the frequency range 10 MHz to 800 MHz. In addition to its low noise figure, LNA1080014 features very good linearity characteristics. This amplifier is designed for use in the VHF and the lower UHF range.
LNA1080014 amplifies signals in the frequency range 10 MHz to 800 MHz. It features a low noise figure and high linearity. This module can be used as a preamplifier in VHF/UHF applications for example. An internal highpass filter located at the input of the amplifier avoids influences of signals in the low frequency range.

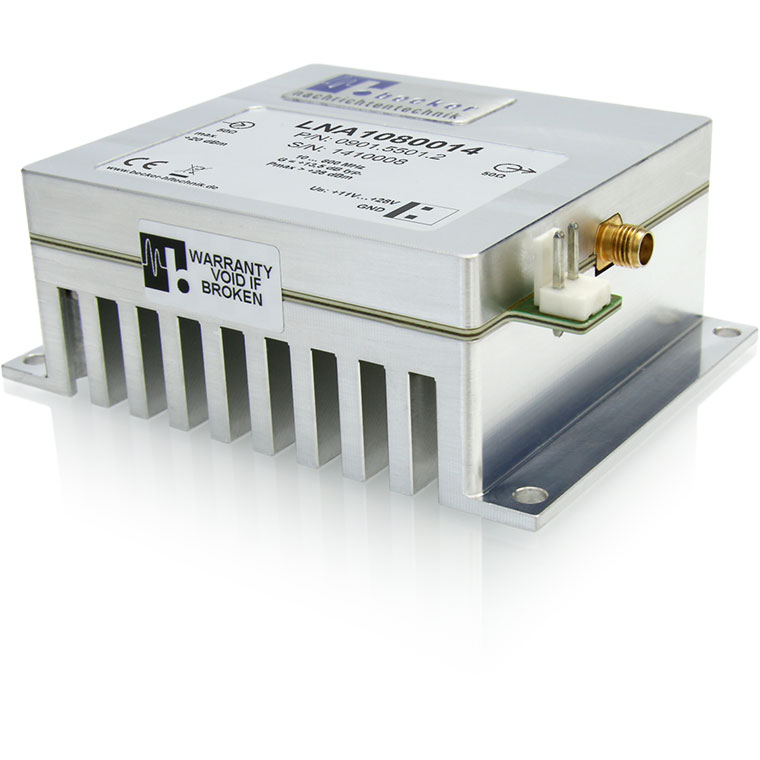

As the LNA1080014 is designed as a module, it can be operated in multiple ways, for example as laboratory equipment or in devices. Its case is made of aluminium and offers passive cooling. For operation at room temperature, the amplifier does not require any active cooling. As a result, LNA1080014 is a compact amplifier for versatile use making additional effort of cooling unnecessary. It also offers a wide DC supply range from +11 V to +28 V. This amplifier module is equipped with a straight power connector. For use in flat devices (1 U), LNA1080014 is also available with an angled power connector.
This amplifier module offers excellent RF characteristics covered in compact and robust module design. In addition to the solid design of the mechanics, the amplifier is also resistant against mismatches which can occur in operation with complex loads. LNA1080014 offers reverse polarity protection as well.

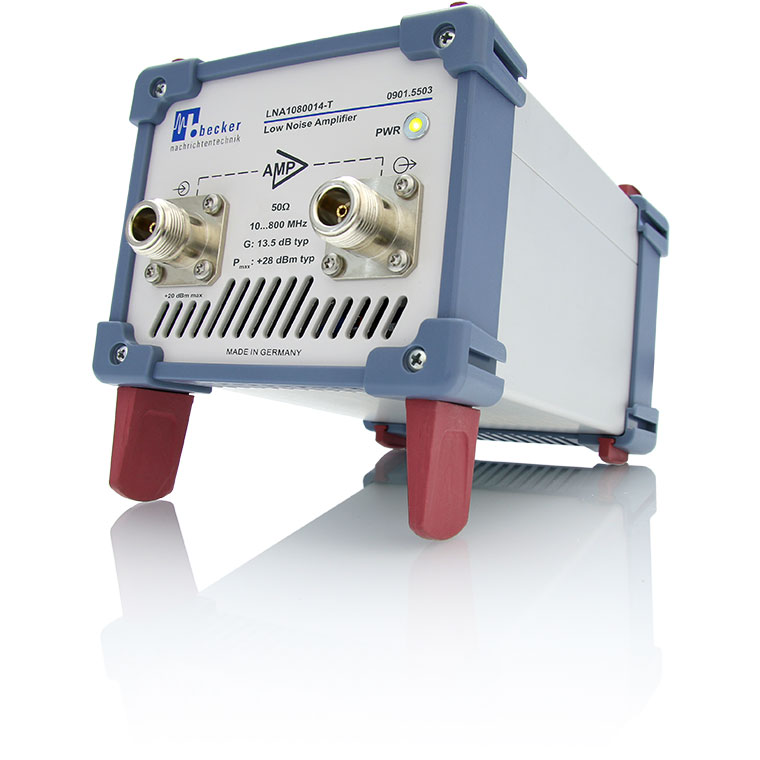

Also available in Laptop Version
