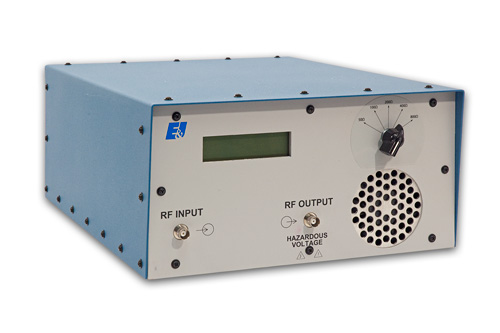

HI-Z-800 - High impedance matching transformer

Main features

  • Low frequency 500 kHz
  • High frequency 5 MHz
  • Maximum power 1000 W
  • Input impedance 50 Ω
  • Output impedance 50, 100, 200, 400, 800Ω
Price request Datasheet Ask a question

HI-Z switching impedance matching transformers are useful for ultrasound, transducer and laboratory applications. The HI-Z series allows the impedance of 50 ohms to be adapted to the higher impedances of 100, 200, 400 and 800 ohms. Enabling maximum power transfer with manual switch settings, the Locked-On series represents E&I’s commitment to providing the highest quality RF products, durability and robustness.

HI-Z-800 High impedance matching transformer
