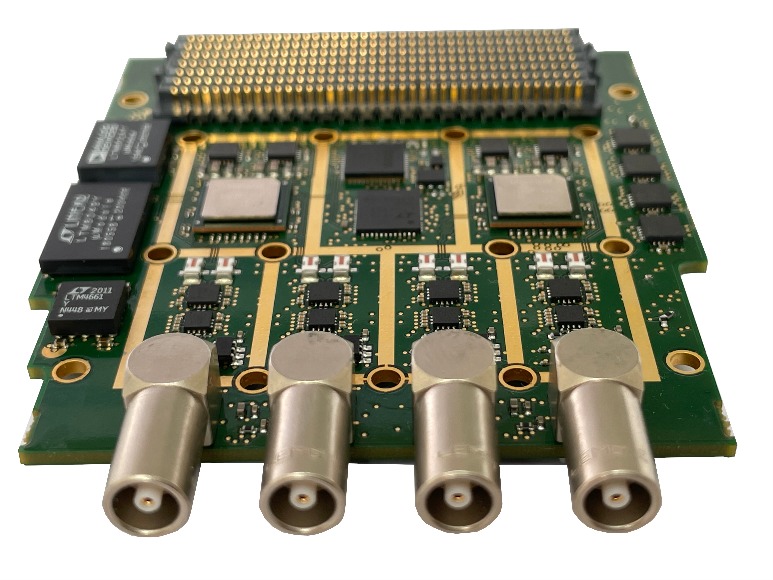

The GFT6304 FMC module is the ideal digitizer for characterizing high speed signal. This compact
digitizer can record four analog inputs at speed of 3.2 GS/s with 12 bits resolution.
The four flexible DC coupled analog front end contains a variable gain, variable bias control, over
voltage protection and anti-aliasing filter.
The settings are controlled with SPI interface via FMC+ connector. The on-board clock is implemented with low phase noise clock and can be external via the FMC+ connector.
The GFT6304 is a standard FMC+ module according to VITA 57-4 2018 standard.
In option for lower cost channel number can be reduced to 2 channels and sample rate can be
reduced to 2.7 GS/s.
