The GFT6204 FMC module is the ideal digitizer for characterizing high speed signal. This compact
digitizer can record four analog inputs at speed of 3.2 GS/s with 12 bits resolution.
The four flexible DC coupled analog front end contains a variable gain, variable bias control, over
voltage protection and anti-aliasing filter.

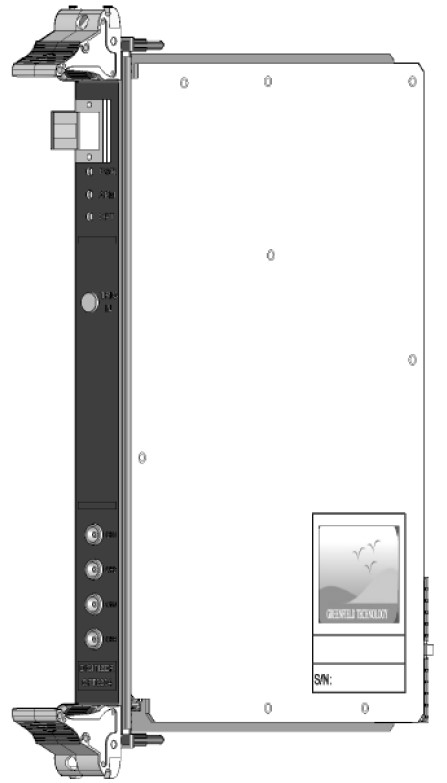

The GFT6204 is a cPCI 6U 1 slot board.
The GFT6024 is a Digitizer that operates either as a standalone device, or as a component in a timing system (Option 2). In a timing system, the GF6204 is operated in conjunction with a GFT3001 Master Transmitter that controls and synchronizes a number of GFT6024 or GFT1004 DDGs via optical fibers.
With option 1, the GFT6204 is an OEM board (with an Ethernet interface and +5 V power supply) that can be easily integrated into your product.
The digitizer is supplied with a software application which includes a front panel graphical interface via Ethernet that provide a remote control via a standard PC.
This application can be used to control and explore the capabilities of the high-speed digitizer.
