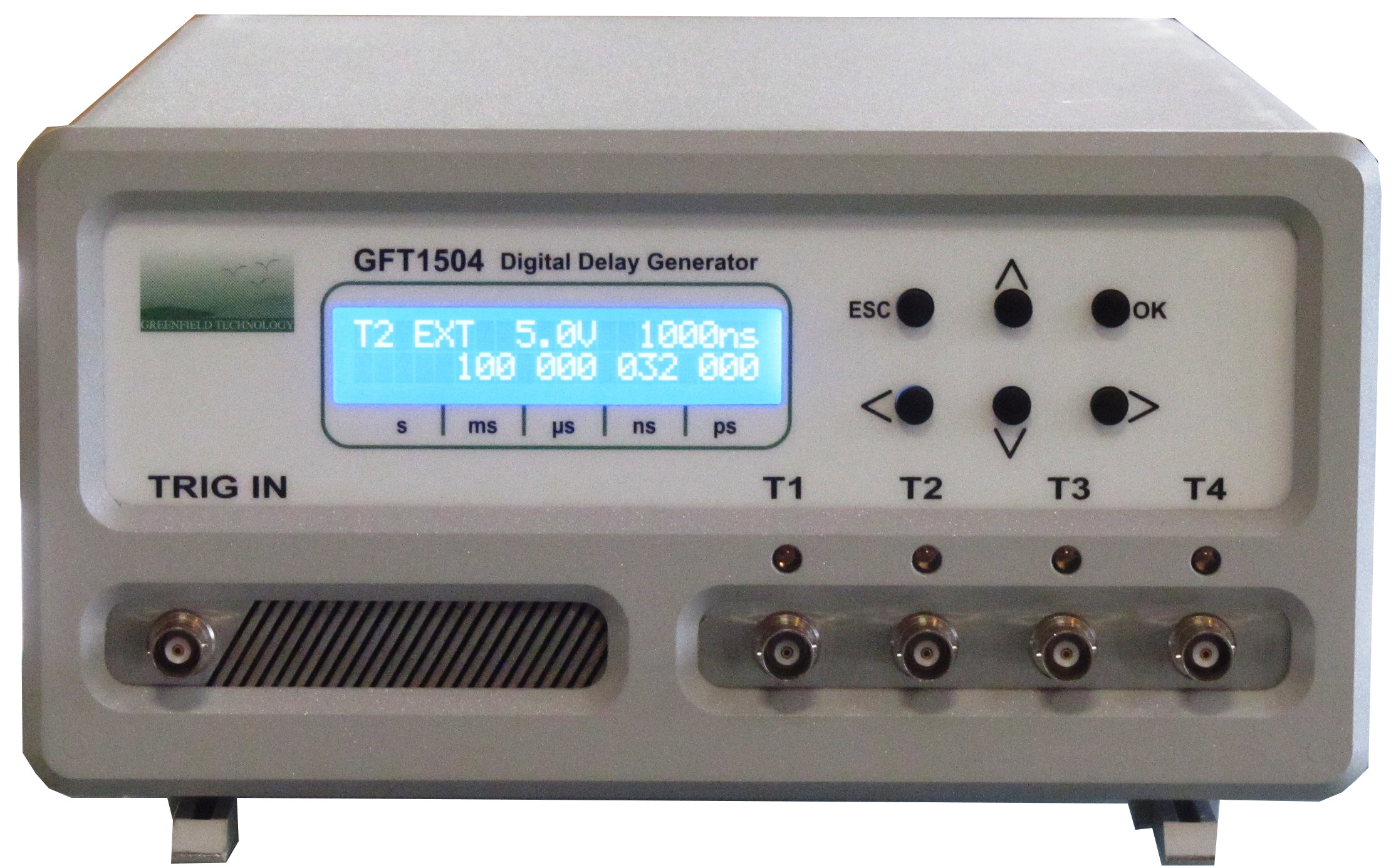

GFT1504 - 4/8/10 channel Delay Generator

Main features

  • 4 independent Delay Channels (10 in option)
  • 100 ps resolution (1ps in option)
  • 25 ps RMS jitter (channel to channel)
  • 10 second range
  • Channel Output pulse
    • 6 V/50 Ω, 3 ns rise time
    • Independent control of width, polarity and amplitude
  • Independent trigger rate (repetitive or single) for every channe
  • External trigger mode from external input
    or Internal trigger mode from two synchronous programmable timers
  • External Clocking up to 90 MHz (in option)
  • Controlled via Front panel, Ethernet, Internet (Control panel Web page)
  • Compact packaging
  • Options
    • Extension to 8 or 10 delay channels
    • Channel Output amplitude 10V or 20V or 32V under 50Ω, or Optical pulse
Price request Datasheet Ask a question

The GTF1504 Digital Delay Generator provides up to ten independent delayed pulses. Delays up to 10 seconds can be programmed with 100 ps resolution and channel to channel jitter is Less than 25 ps rms.

BNC outputs deliver up to 6 V, 3 ns rise time under 50 Ω. Pulse amplitude, width and polarity are adjustable on each output channel.
In option pulse amplitude can be 2.5 to 10 V or 5 to 20 V or fixed 32 V or optical pulse.
The generator provides two trigger mode to trigger delay channel: External mode from one input trigger or Internal from two synchronous programmable timers. Each channel can be single or repetitive trigger rate.

GFT 1504 parameters can be local controlled over the front panel keys and LCD display and remote controlled via Ethernet (10/100 Mb/s) or Internet (Web page from Internal Web server). This “web page” provides a simple method to configure the settings on each channel and to control operation.

GFT1504 Opt 1 - Extension to 8ch, TTL channel output

Delay Generator
GFT1504 Opt 2 - Extension to 10ch, TTL channel output

Delay Generator
GFT1504 Opt 3 - 2.5V to 10V channel output (price per channel)

Delay Generator
GFT1504 Opt 4 - 5V to 20V channel output (price per channel)

Delay Generator
GFT1504 Opt 5 - 32V channel output (price per channel)

Delay Generator
GFT1504 Opt 8 - 1 ps resolution (price per channel)

Delay Generator
GFT1504 4/8/10 channel Delay Generator
GFT1504 Opt 1 Extension to 8ch, TTL channel output
GFT1504 Opt 2 Extension to 10ch, TTL channel output
GFT1504 Opt 3 2.5V to 10V channel output (price per channel)
GFT1504 Opt 4 5V to 20V channel output (price per channel)
GFT1504 Opt 5 32V channel output (price per channel)
GFT1504 Opt 8 1 ps resolution (price per channel)
