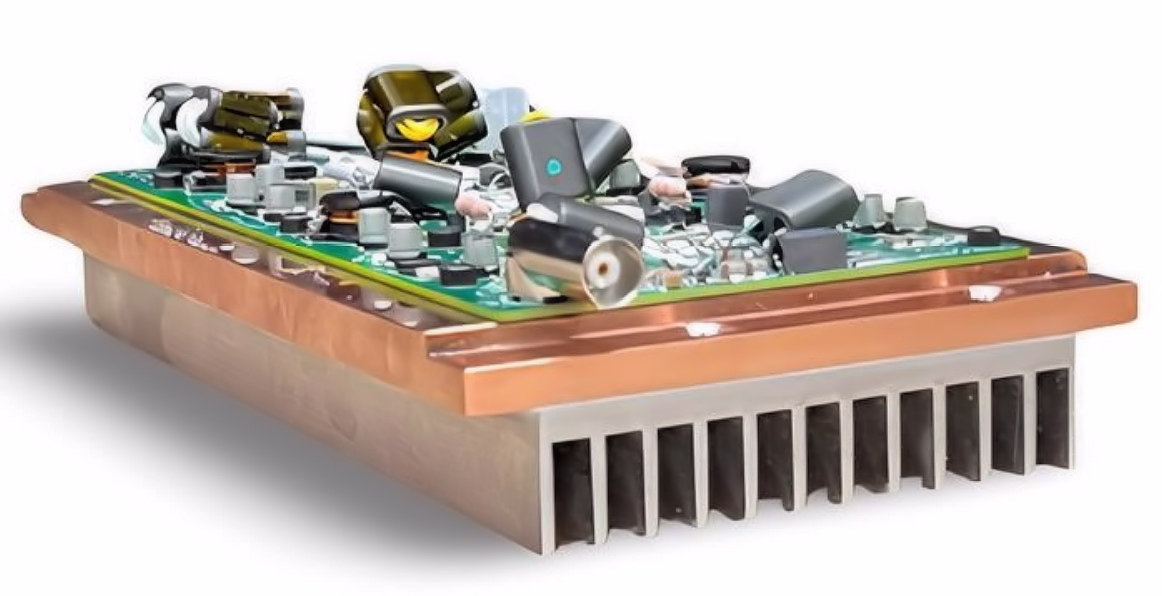

The FORTE-50 Amplifier Module is a rugged source of RF power, useful for ultrasonics, laser modulation, RFI/EMI, plasma equipment and general laboratory applications.
This module is designed to be integrated in to a system. It requires a DC voltage input and forced air cooling.
The FORTE-50 represents E&I’s commitment to providing RF power amplifiers of the highest quality, durability and ruggedness.
The FORTE-50 produces 50 Watts of Class A linear power output over the entire frequency range from 250 KHz to 50 MHz.
It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 48 dB with a typical gain flatness of +/ – 1.5 dB
