FDC3300e - Frequency distribution chassis

Main features

  • Single Input or Autoswitching Between Dual Inputs
  • 10-Channel, Broadband (10 kHz to 10 MHz) Sine Wave Distribution
  • Low Added Phase Noise
  • High Port-to-Port Isolation
  • Very Low Distortion
  • RS-232 Port for Control and Monitoring
  • Dual-Redundant AC or DC Power Supply Option
  • Ethernet Port for Remote Control and Monitoring
Price request Datasheet Ask a question

For Distributing Mid-Range Frequency Sinewaves (10 kHz to 10 MHz)

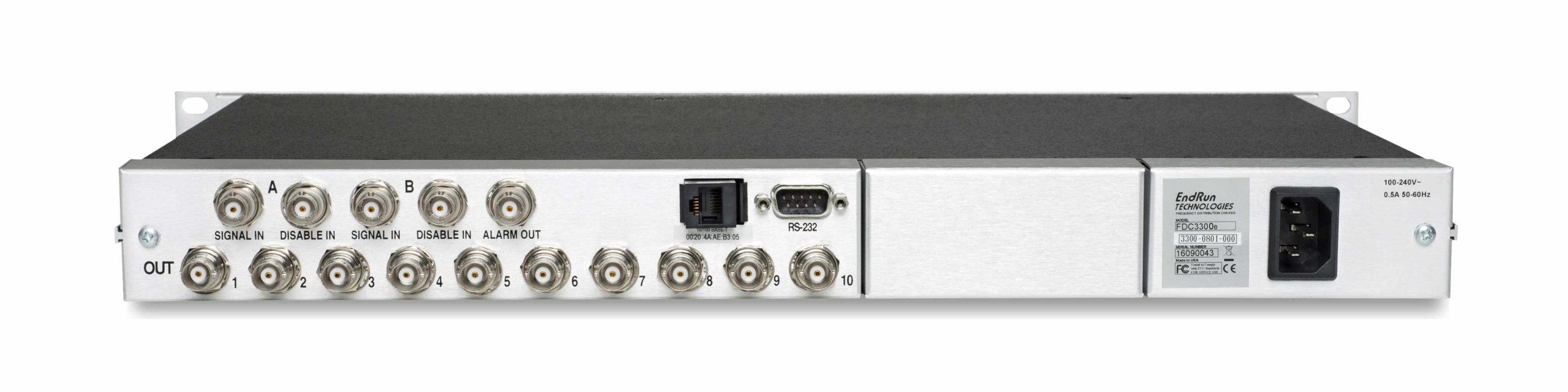

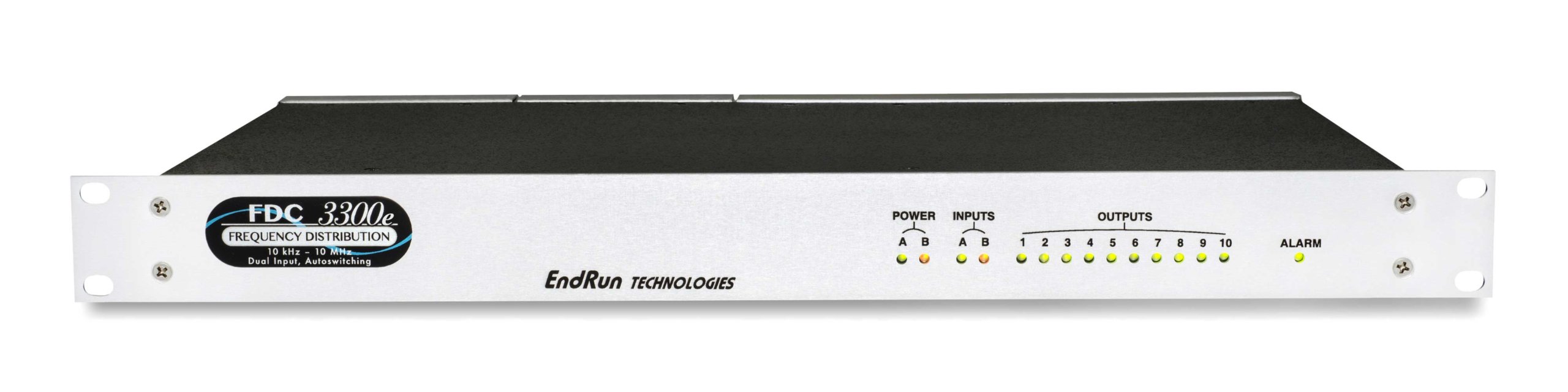

EndRun Technologies Frequency Distribution Chassis is a ten-channel, RF distribution amplifier in a 1U rackmount chassis.  It provides ten isolated copies of an input signal.  Fault sensing of signal levels is provided on all inputs and outputs, and fault status is easily visible via front-panel LED indicators.  Features are:

EndRun Technologies high-performance Frequency Distribution Chassis has state-of-the-art isolation and phase noise performance along with an upper frequency limit of 30 MHz.

3300-0801-000 Frequency distribution chassis

  • USM3300-0800-000
