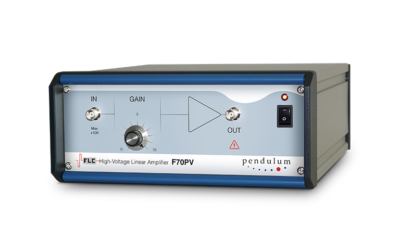

F70PV - Unipolar high voltage amplifier 70V, 2Amps, variable gain

Main features

  • Bandwidth from DC to 5 MHz
  • Amplification X10 times, variable
  • Load type Resistive || capacitive
  • Input Impedance of 500 ohm || 30 pF
  • Output Impedance  <1 ohm in the linear mode
  • Input Voltage of 0-7 V Nominal
  • Output Voltage of  70V Max Unipolar
  • Output Current  of 2 A continuous
  • Output Slew Rate  of 500 V/µs
Price request Datasheet Ask a question

The F70PV is a very fast general purpose linear amplifier having a variable amplification of 0-10 times and capable of bipolar voltage output of 70V.
Any function generator or arbitrary waveform generator or any othe signal source can be used as an input device.

The amplifier’s output is linear from DC up to 5 MHz range. It can be used in a wide range of high speed applications.

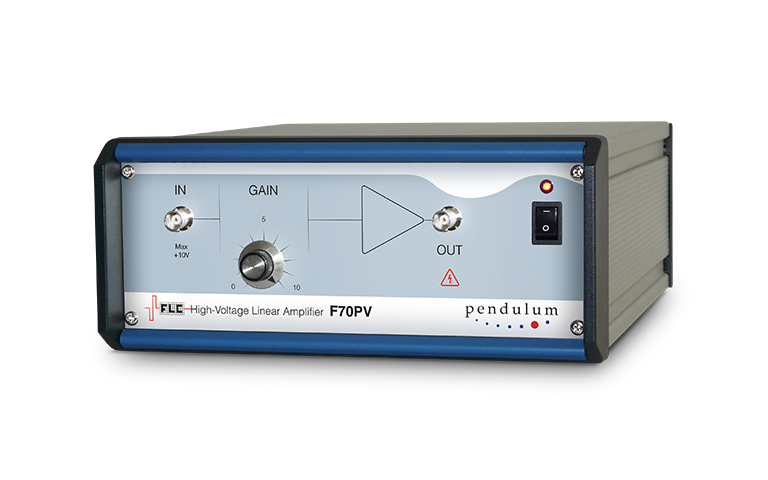

F70PV Unipolar high voltage amplifier 70V, 2Amps, variable gain
