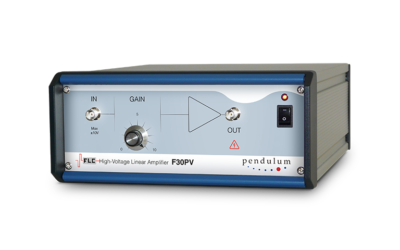

F30PV - High voltage amplifier 35Vpp, 2Amps, variable gain

Main features

  • Bandwidth from DC to 5 MHz
  • Amplification X10 times, variable
  • Load type Resistive || capacitive
  • Input Impedance of 500 ohm || 30 pF
  • Output Impedance  <1 ohm in the linear mode
  • Input Voltage of ±3.5 V Nominal
  • Output Voltage of  ±35V Max
  • Output Current  of 2 A continuous
  • Output Slew Rate  of 500 V/µs
Price request Datasheet Ask a question

The F30PV is a very fast general purpose linear amplifier having a variable amplification of 0-10 times and capable of bipolar voltage output of ±35V.
Any function generator or arbitrary waveform generator or any other signal source can be used as an input device.

The amplifier’s output is linear from DC up to 5 MHz range. It can be used in a wide range of high speed applications.

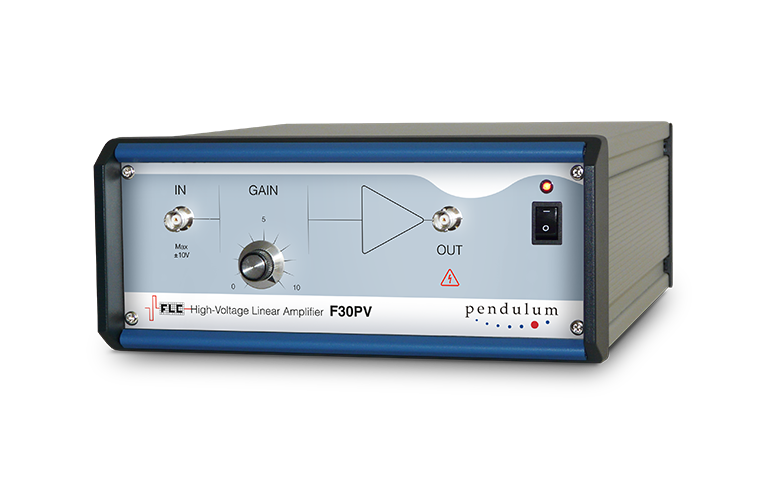

F30PV High voltage amplifier 35Vpp, 2Amps, variable gain
