F10A - High voltage amplifier 100Vpp

Main features

  • Bandwidth from DC to 1 MHz at 100 Vpp
  • Amplification X10 times, fixed
  • Load type Resistive || capacitive with Full bandwidth 400 pF
  • Input Impedance of 1 Mohm || 10 pF
  • Output Impedance  <0.1 ohm in the linear mode
  • Input Voltage of ±10 V Nominal
  • Output Voltage of  ±100V Max
  • Output Current  of 185 mA continuous
  • Output Slew Rate  of 300 V/µs up to 400 pF load
Price request Datasheet Ask a question

The F10A is a general purpose broadband linear amplifier having a fixed amplification of 10 times and capable of bipolar high voltage output of ±100V.
Any function generator or arbitrary waveform generator or any other signal source with amplitude up to ±10 V can be used as an input device.

The amplifier’s output is linear from DC up to megahertz range.

It can be used in a wide range of applications, for example to drive piezo actuators, MEMS, OLEDs, liquid crystals, etc.

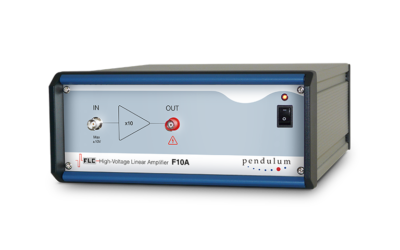

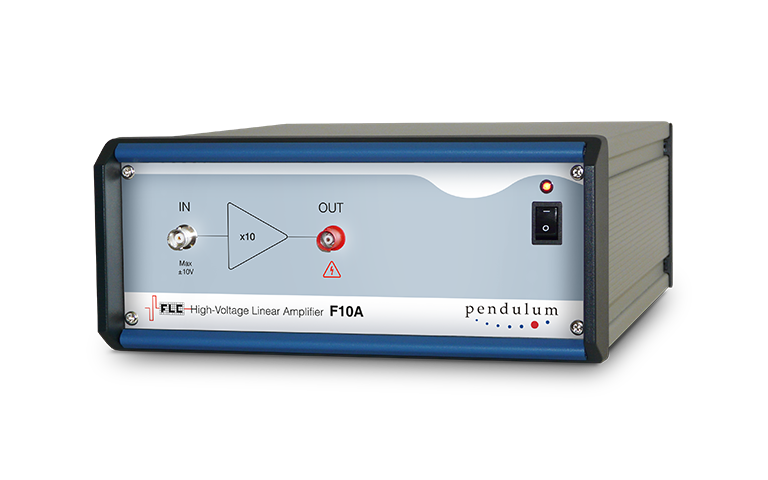

F10A High voltage amplifier 100Vpp
