DAT90L - 6GHz Programmable attenuator

Main features

  • Max input power: +25.0dBm
  • Dimensions: 2.75″ x 1.25″ x 2.15″
  • Attenuation: 0-90dB
  • Step Size: 0.5dB
  • Frequency: 5MHz – 6GHz
  • Insertion loss: < 10dB
Price request Datasheet Ask a question

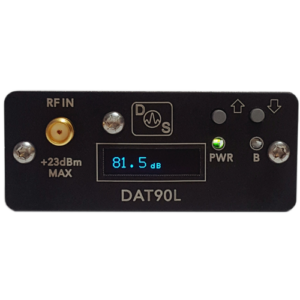

The DAT90L Digital Programmable Attenuator is a compact stand-alone and USB-controlled RF Step Attenuator with 0.5dB steps and a range of 0 to 90dB. This premium version features a bright OLED display and front user control buttons. Input frequency ranges from 5MHz to 6GHz.

No host PC is required to use this device. Automated scripted control is extremely easy requiring no extra drivers, just a simple virtual COM port connection and SCPI based text commands.

DAT90L 6GHz Programmable attenuator
