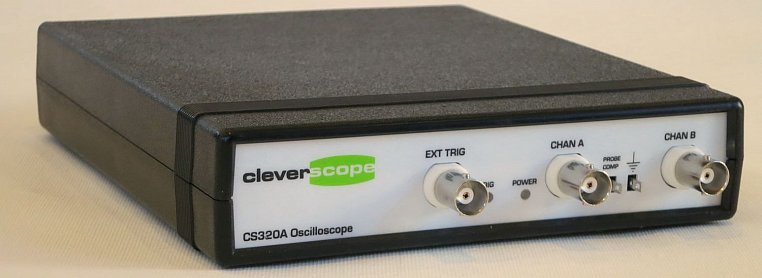

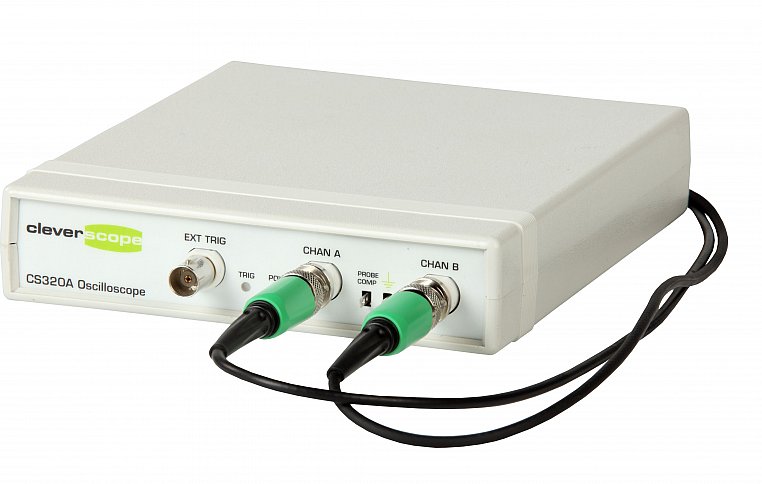

CS320A - 2 Channels, 100MS/Sec USB or Ethernet oscilloscope

Main features

  • 2 Input Channels, 10-bit, 12-bit or 14-bit
  • up to 100 MS/s A/D Converter per Channel
  • 4MSamples/channel (8M Samples/channel)
  • One external Trigger

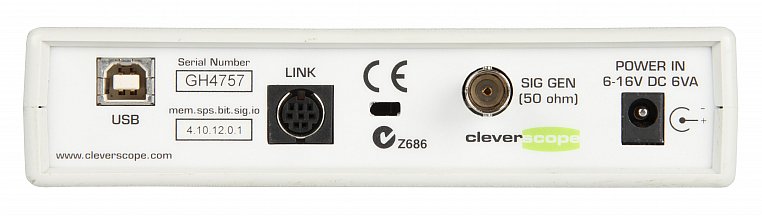

  • A rear panel I/O connector with a 100 Mbit/sec bi-directional LVDS/RS422 link, and three RS422 outputs
  • Anti-alias filter for improved Spectrum Analysis performance

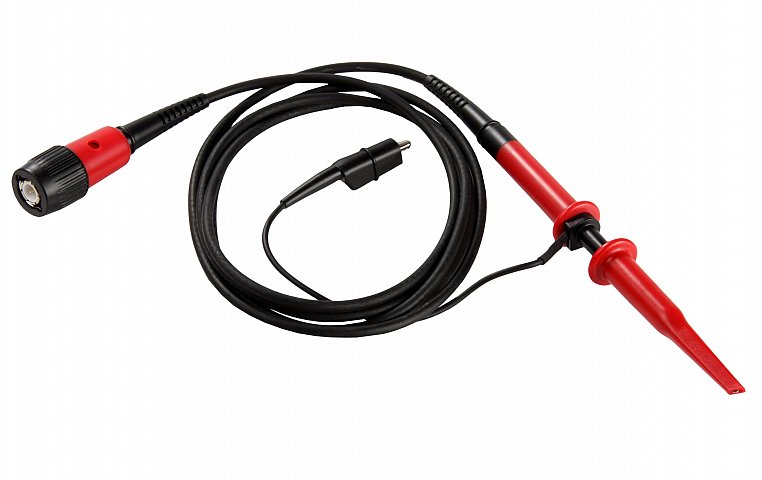

  • 2 analog probes included (x1, x10 / 150MHz)
  • USB 2.0 or Ethernet communication Port
  • Powerful Standalone Application provided
    • Storage Oscilloscope
    • Spectrum Analyzer
Price request Datasheet Ask a question

USB 2.0 oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, External Trigger, 4M samples storage for each of the two analog and external trigger channels, comes with CS300 application software and 2 x CS1001 probe set.
The front panel ground is continuous via the USB ground to the PC.

Available also in version 12 or 14-Bit, extend memory with up to 8M samples and Ethernet instead of USB 2.0

CS320A-FRA - USB 2.0 oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, External Trigger, 4M samples storage for each of the two analog and external trigger channels. The CS701 Isolated Signal Generator (0-65 MHz isolated sine) is factory fitted and included in the price. You don't need an isolation transformer to do FRA with it. Comes with CS300 application software and 2 x CS1001 probe set.

USB oscilloscope
CS320AE - USB 2.0 oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, External Trigger, 4M samples storage for each of the two analog and external trigger channels, comes with CS300 application software and 2 x CS1001 probe set. The front panel ground is continuous via the USB ground to the PC

USB oscilloscope
CS320A - Ethernet oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, External Trigger, 4M samples storage for each of the two analog and external trigger channels, comes with CS300 application software and 2 x CS1001 probe set. The Ethernet interface is fully isolated from the PC.

USB oscilloscope
CS320 2 Channels, 100MS/Sec USB or Ethernet oscilloscope
CS320A-FRA USB 2.0 oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, External Trigger, 4M samples storage for each of the two analog and external trigger channels. The CS701 Isolated Signal Generator (0-65 MHz isolated sine) is factory fitted and included in the price. You don't need an isolation transformer to do FRA with it. Comes with CS300 application software and 2 x CS1001 probe set.
CS320AE USB 2.0 oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, External Trigger, 4M samples storage for each of the two analog and external trigger channels, comes with CS300 application software and 2 x CS1001 probe set. The front panel ground is continuous via the USB ground to the PC
CS320A Ethernet oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, External Trigger, 4M samples storage for each of the two analog and external trigger channels, comes with CS300 application software and 2 x CS1001 probe set. The Ethernet interface is fully isolated from the PC.
