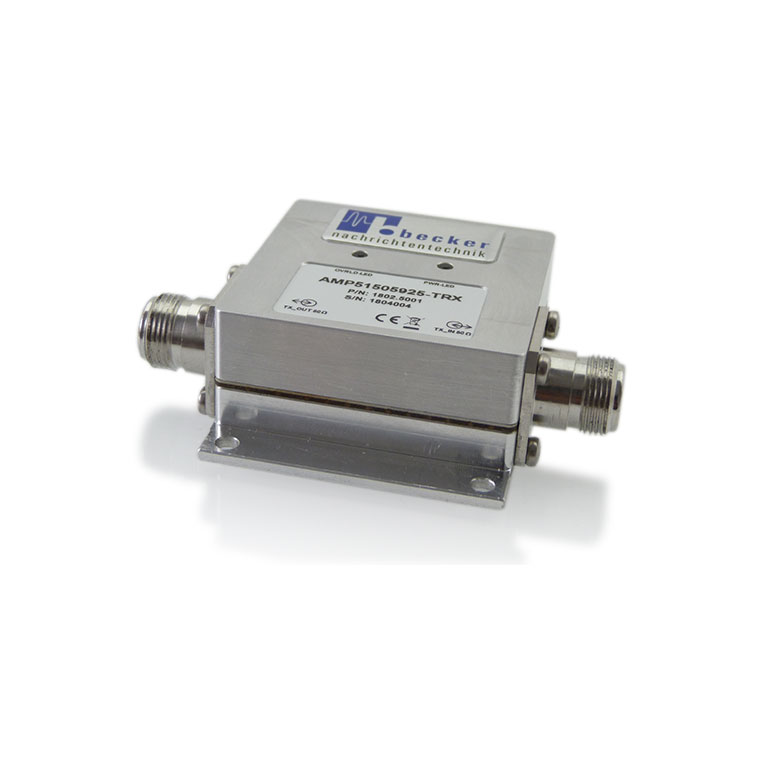

AMP51505925-TRX is a bi-directional booster amplifier for radiation of Wi-Fi signals via radiating cables for the frequency range 5150 to 5925 MHz. This booster compensates the longitudinal attenuation of the radiating cable. By chaining multiple segments with boosters a significantly longer cable run is supplied from one access point. The use of boosters simplifies dramatically the cell planning in complex applications with many access points.
The booster amplifier is supplied by phantom power via radiating cable. The booster forwards the DC power from one to the other RF port via an internal BIAS-T. Therefore further booster amplifiers can be fed with power via a central power supply. LEDs for the indication of operation state simplify maintenance.
