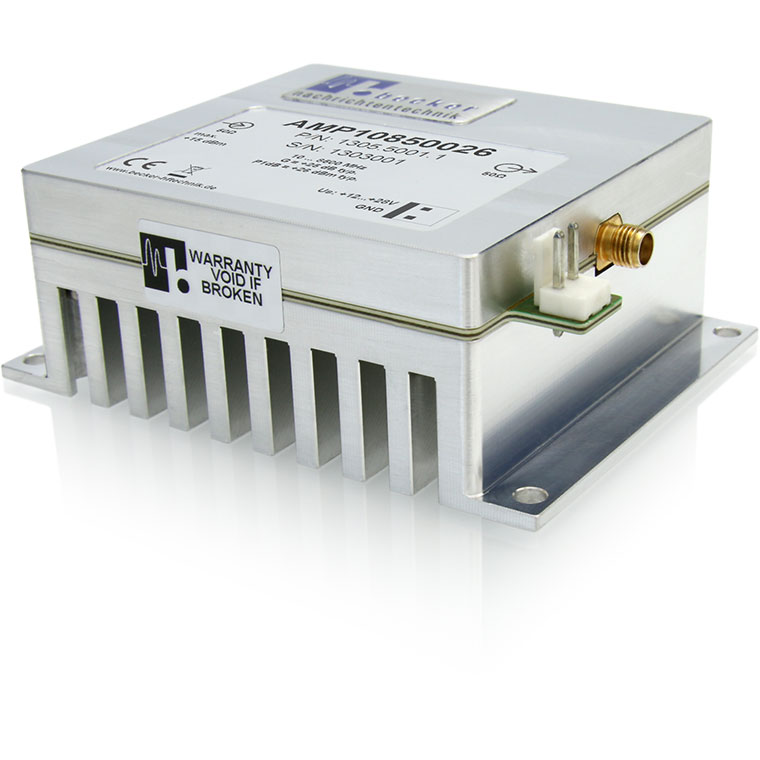

AMP10850026 is an extraordinary wideband amplifier with an output power of up to 500 mW suitable for the frequency range 10 MHz to 8500 MHz. It stands out due to its extremely high bandwidth and offers good linearity characteristics as well as high gain. This amplifier module is used in research and development (R&D), radio monitoring and direction finding.
AMP10850026 amplifies signals in the frequency range 10 MHz to 8500 MHz. It features an extraordinary wide frequency range, high linearity and a low noise figure. Due to its bandwidth, AMP10850026 is suitable for all common broadcast standards and Wi-Fi IEEE 802.11 a/b/g/n/ac.
As the AMP10850026 is designed as a module, it can be operated in multiple ways, for example as laboratory equipment or in devices. Its case is made of aluminium and offers passive cooling. For operation at room temperature, the amplifier does not require any active cooling. As a result, AMP10850026 is a compact amplifier for versatile use making additional effort of cooling unnecessary. It also offers a wide DC supply range from +12 V to +28 V. This amplifier module is equipped with a straight power connector. For use in flat devices (1 U), AMP10850026 is also available with an angled power connector.
This amplifier module offers excellent RF characteristics covered in compact and robust module design. Additionally, AMP10850026 features reverse polarity protection.

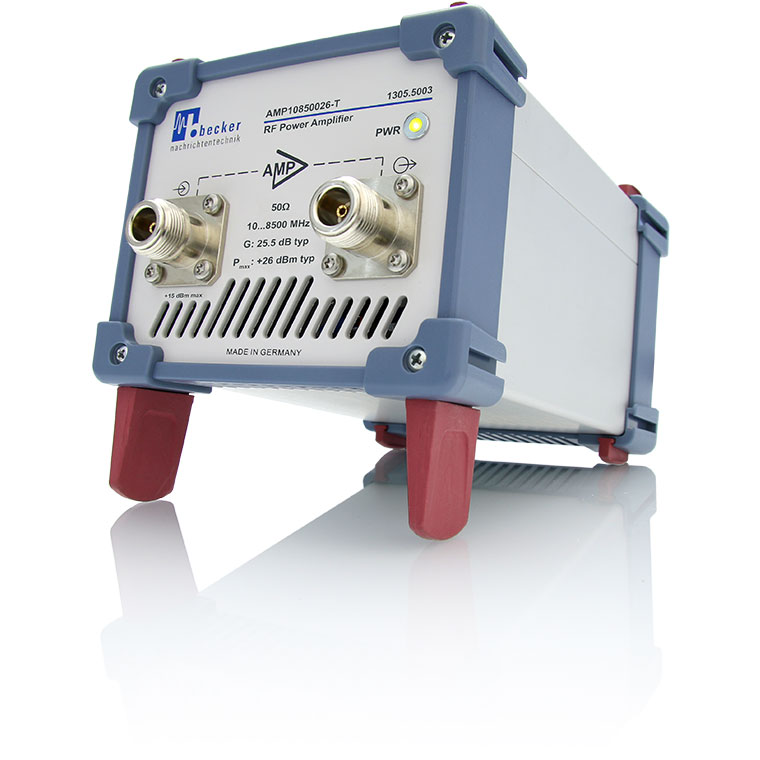

Also available in Laptop version, AMP10850026-T
