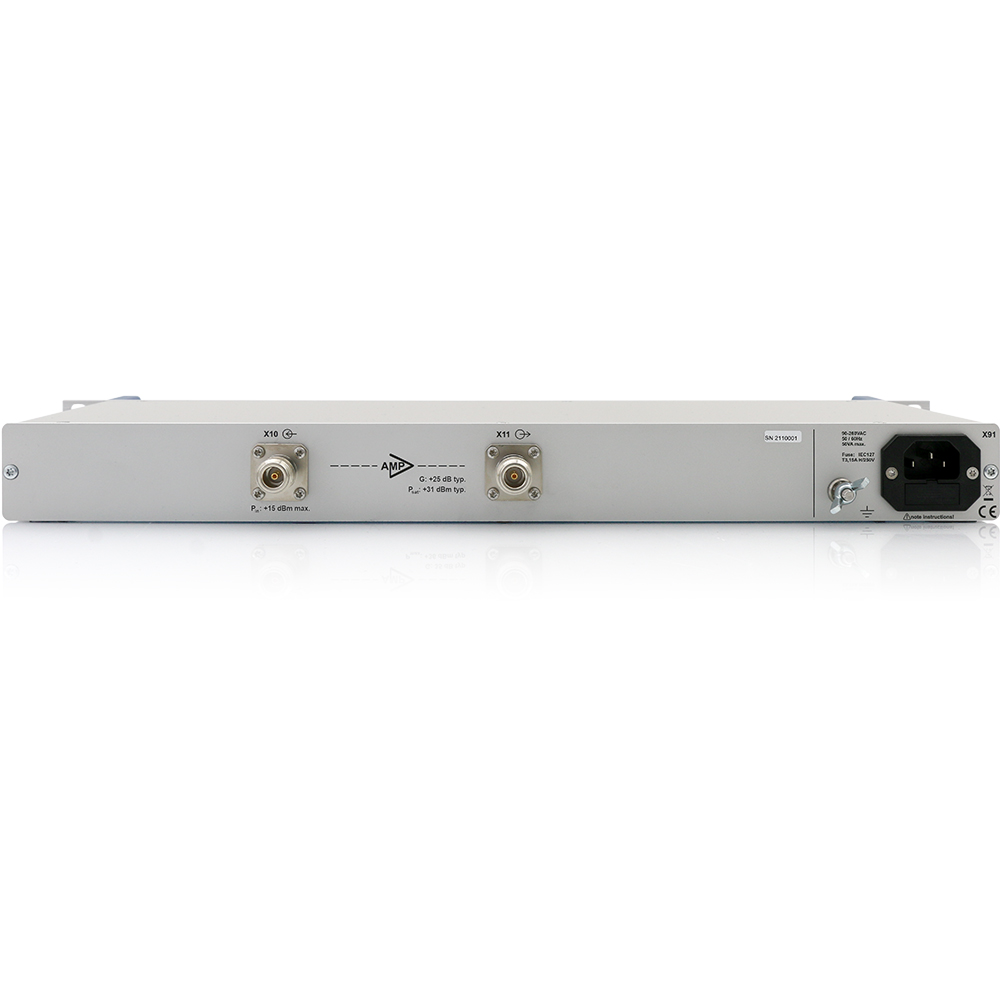

AMP101800030-R - 1 W Ultra-Wideband Amplifier, 19" Rack Device

Main features

  • 1 W Ultra-Wideband Linear Amplifier Device
  • 10 … 18000 MH
  • output power +31 dBm typ.
  • high OIP3 +40 dBm typ.
  • high dynamic
  • self test function
  • temperature monitor
  • optical power and status indication
  • compact 19”, 1 U device
Price request Datasheet Ask a question

AMP101800030-R is an extremely wideband RF amplifier with up to 1 W output power for the frequency range from 10 MHz to 18000 MHz.

With its extremely large bandwidth, the device offers very good linearity properties as well as high dynamics and is compatible to 19″ mounting systems. The AMP101800030-R is used, for example, in measurement environments in research and development (R&D), broadband communication, as well as radio reconnaissance and radio monitoring. All amplifier devices of the AMP series are designed in 50 Ohm technology.

AMP101800030-R 1 W Ultra-Wideband Amplifier, 19" Rack Device
